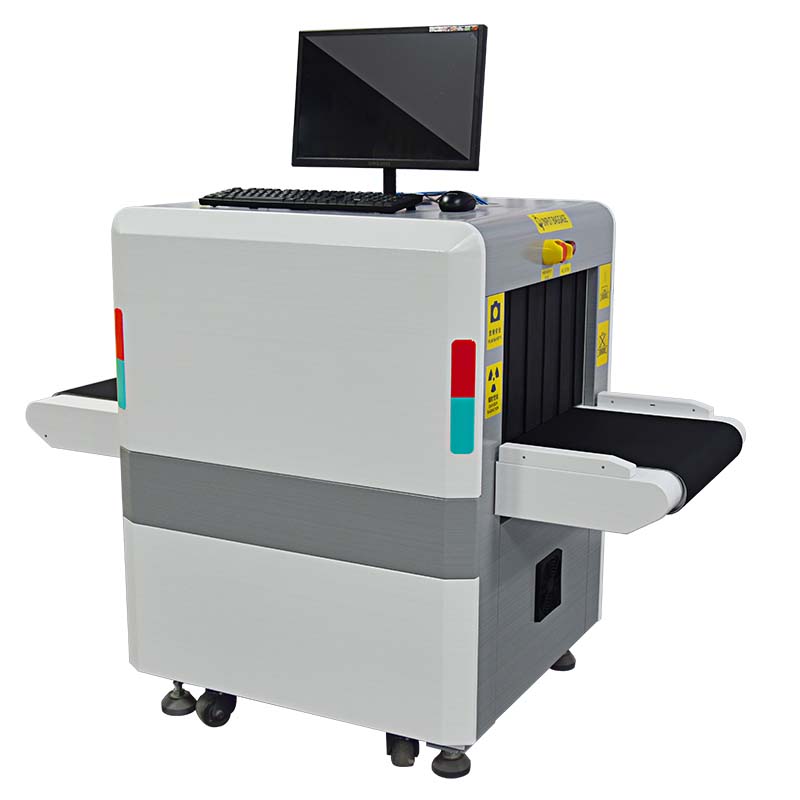

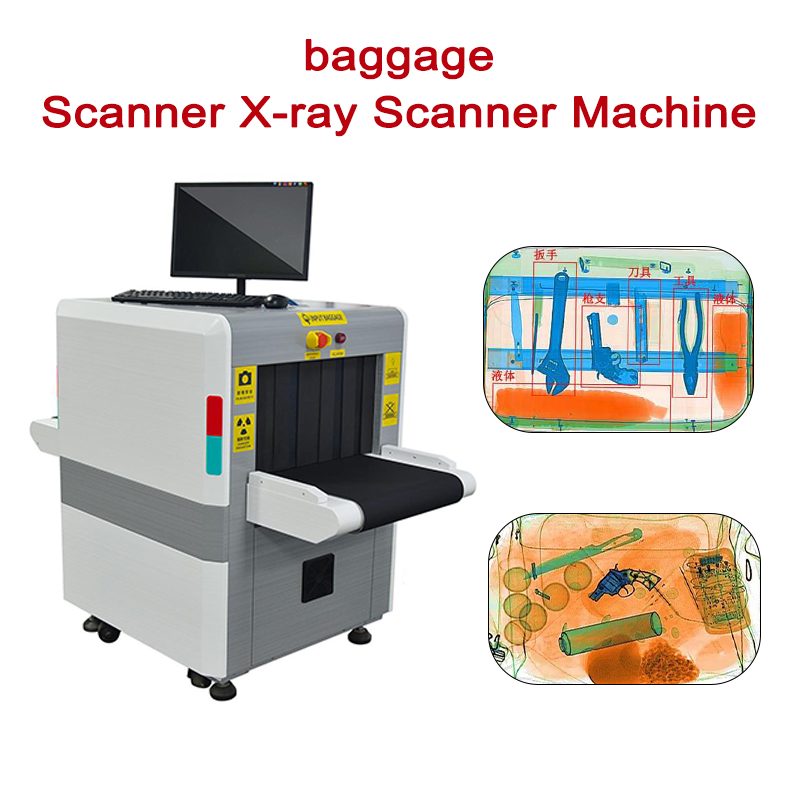

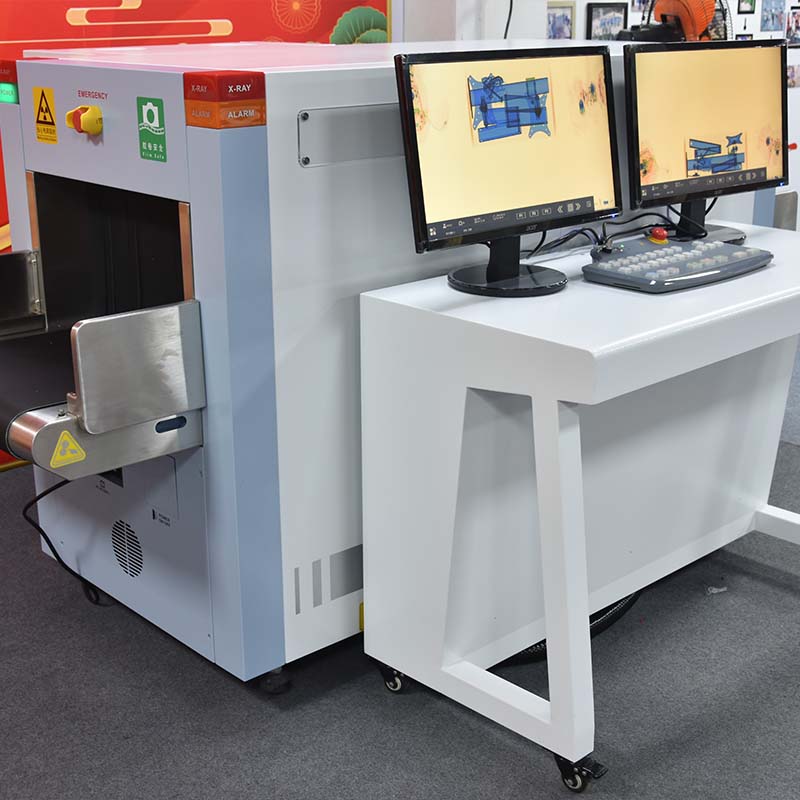

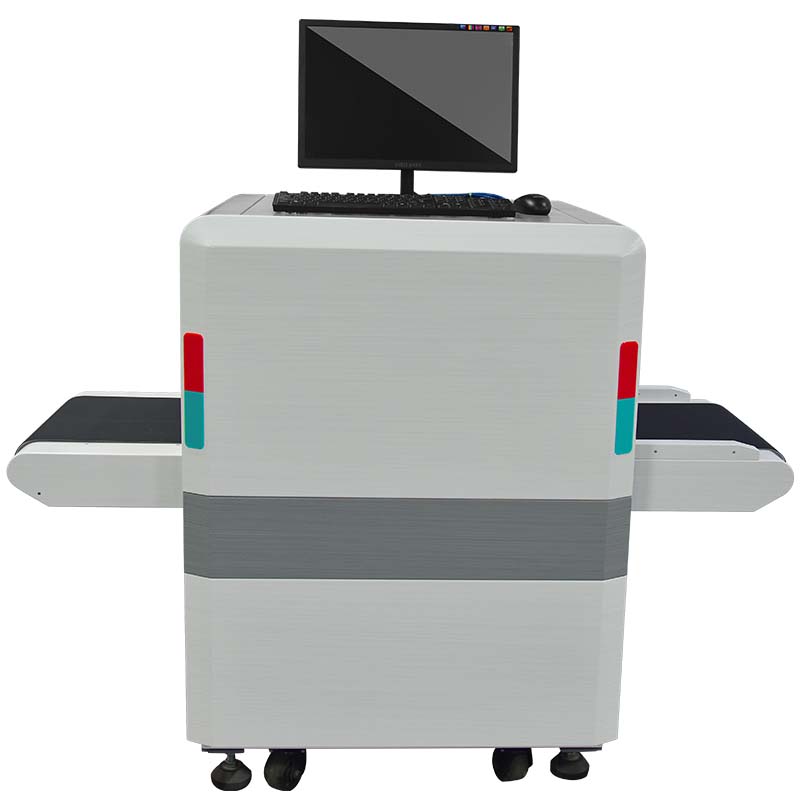

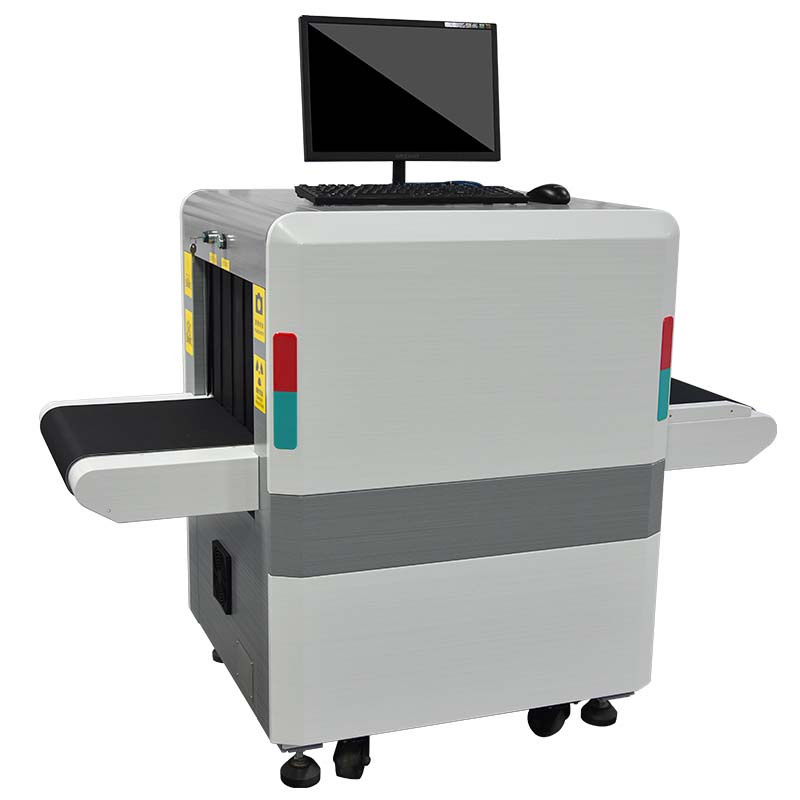

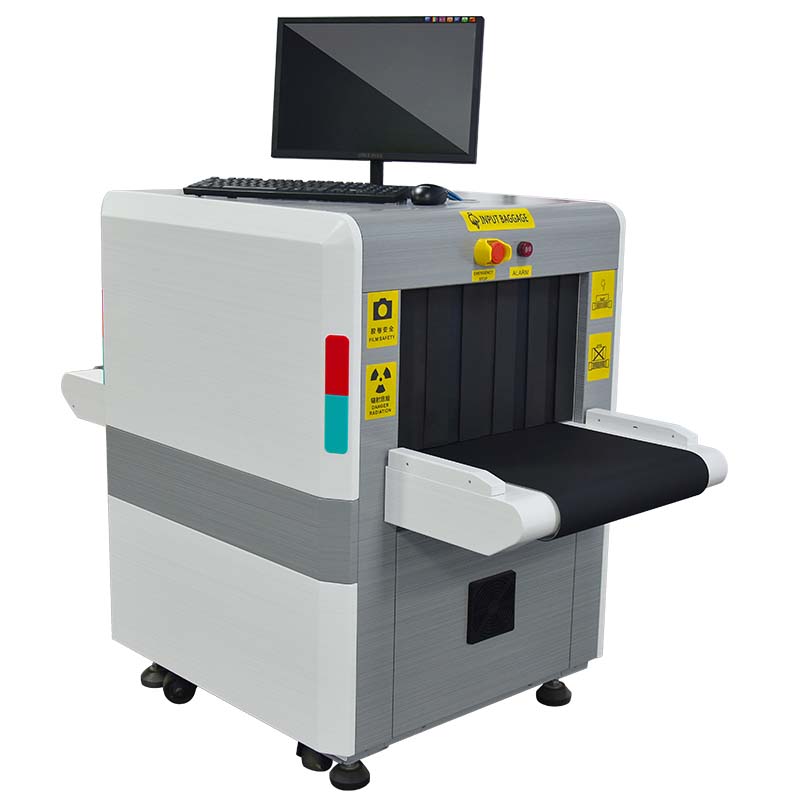

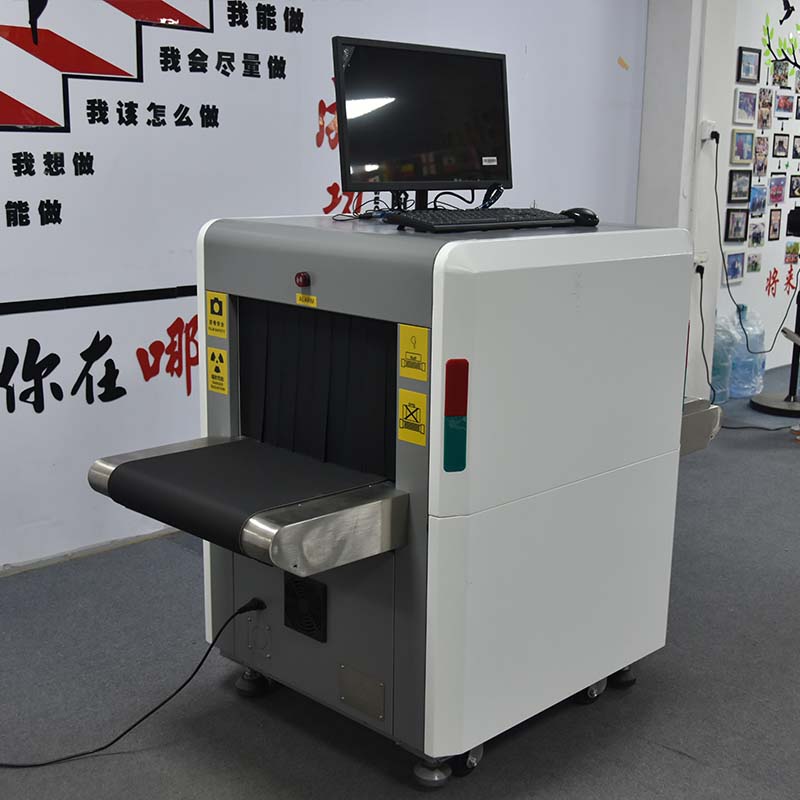

The CQ-100100 is a large-scale X-Ray Inspection System featuring a tunnel opening of 100 x 100 cm (39” x 39”). It is specifically engineered for screening standard baggage, oversized luggage, and large-scale objects.
The YW-100100 system balances high capacity with a streamlined footprint. Equipped with a heavy-duty conveyor belt, it supports an unprecedented weight of 270 kg (595 lbs), making it the ideal solution for high-congestion sites with limited space and crucial large-sized screening requirements.
| Tunnel size | 1000(W)X1000(H) mm |
| Conveyor speed | 0.22 m/s |
| Conveyor Max load | 250 kg |
| Wire distinguishing capabilities | Ø 0.101mm |
| Steel Penetration | 40 mm |
| Film safety | For ISO 1600 |
| Beam direction | From bottom |
| Tube Current | 0.4-1.2ma (adjustable) |
| Anode Voltage | 80KV (adjustable) |
| Single inspection dose | <0.12 μGy/H |
| Cooling/Duty Cycle | Sealed oil bath with forced air |
| Operating Temp/Humidity | -20°C-60°C / 20%-95% (non-condensing) |
| Noise Level | <55DB |
| Voltage | 220VAC(±10%) 50±3Hz |
| Power Consumption | 0.5KVA |
