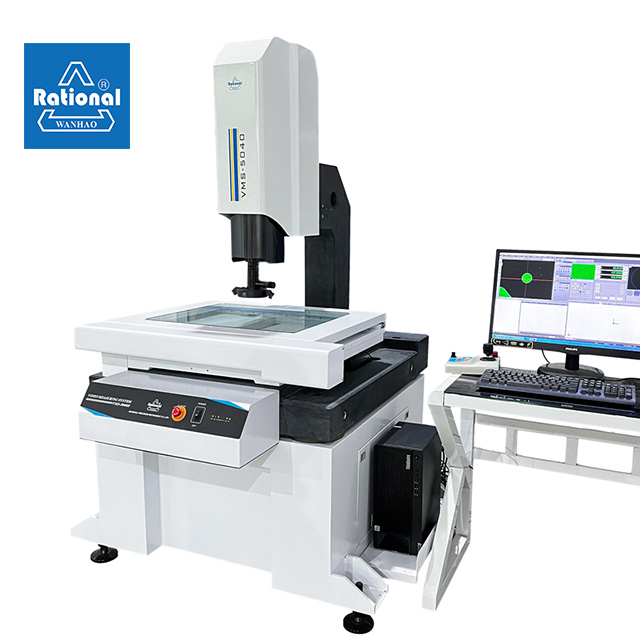

For 2D/3D Vision Inspection System Optical Testing Equipment Video Measuring Machine Quality Control 0.5um Accuracy CE/ISO

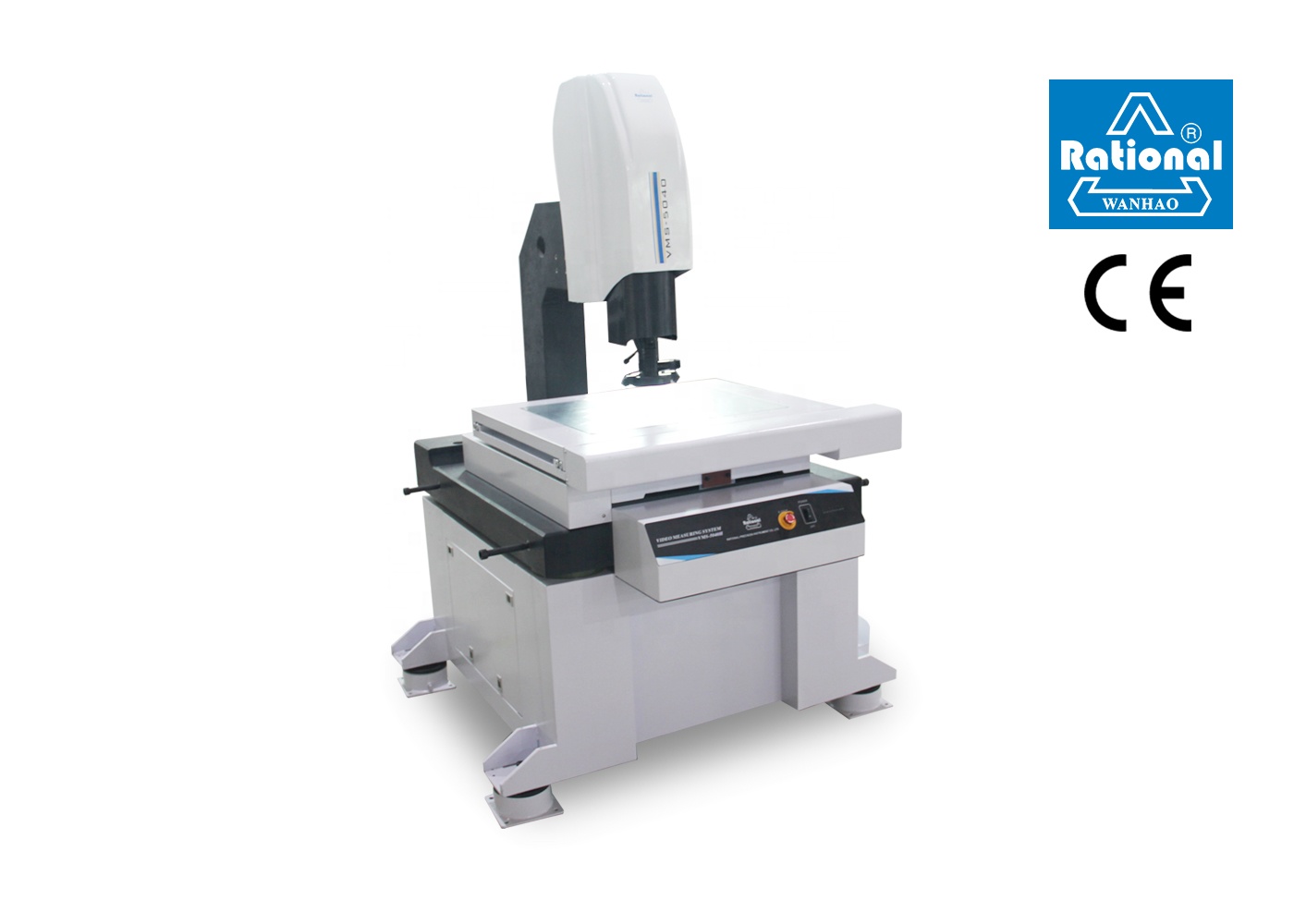

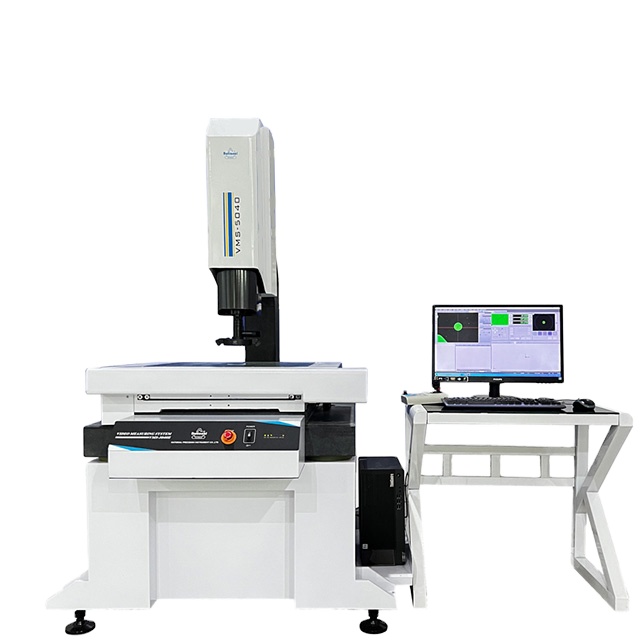

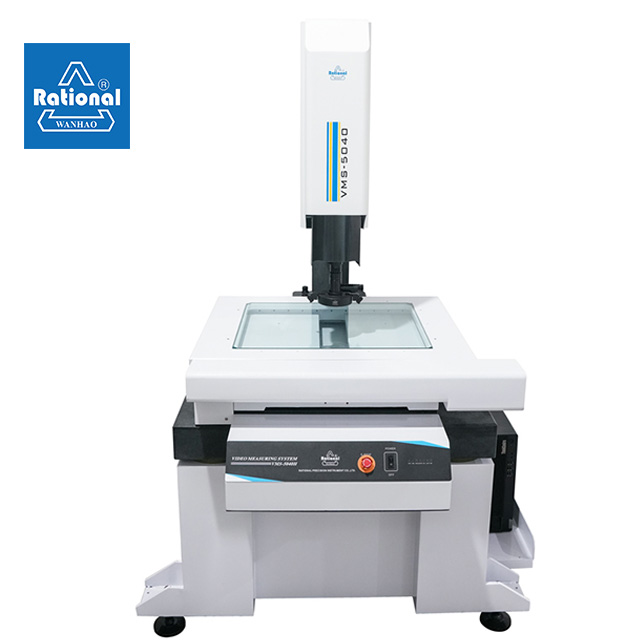

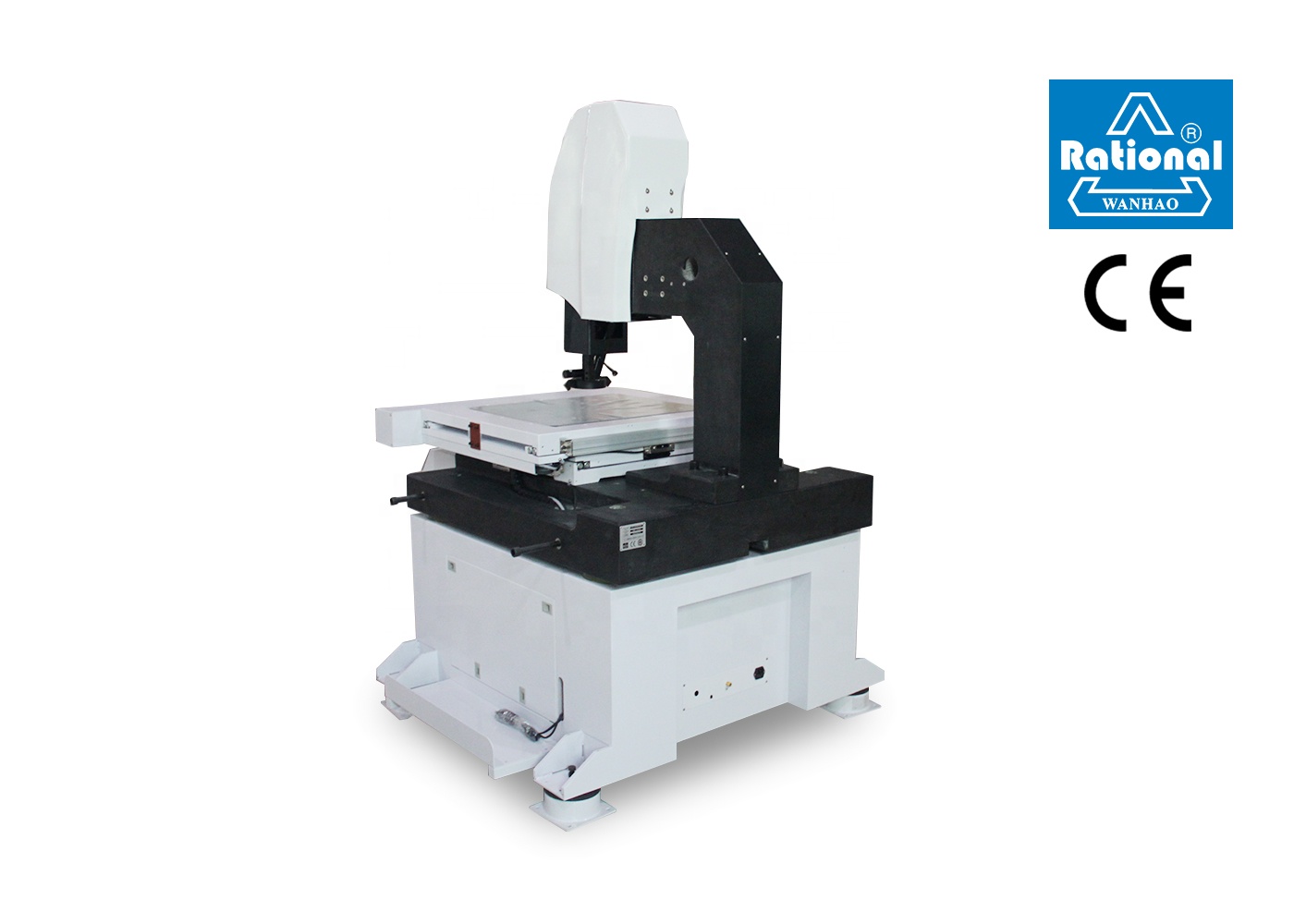

Product Parameters

Parameter	Specification
Model	VMS-5040H
Metal Table Size	786 × 636 mm
Glass Table Size	570 × 470 mm
Travel (X, Y)	470 × 370 mm
Z-Axis Travel	200 mm (Can be customized to 400 mm)
Linear Scale Resolution	0.5 μm
Indication Error	E1XY = (2.5 + L/100) μm
Video System	1/2” color CCD camera
Zoom Lens	0.7 ~ 4.5× zoom lens (Total magnification: 20 ~ 128× on 19.5" display, Resolution: 1440 * 900)
Field of View	11.1 mm ~ 1.7 mm
Dimension (L × W × H)	1200 × 1270 × 1870 mm
Weight	850 kg
Power Supply & Power	AC 100-240V, 50/60Hz; Power: 400W (excluding PC) / Max 1800W System Power
Computer Configuration	Brand computer (standard configuration included)

Application

Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, this instrument is a high precision and high efficiency measuring machine.

Designed and manufactured by a professional team with more than 20 years of history in precision measuring systems, these Video Measuring Machines are of good quality and reliability. They have been widely used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments, and production workshops.

Company Profile

Certifications

Product Packaging

Frequently Asked Questions

What are the main applications of this Video Measuring Machine?

It is mainly designed for high-precision 2D measurements and can also support specific 3D measurements when required. It is widely used in industries such as machinery, electronics, instrumentation, watchmaking, plastics, and inside metrology labs or verification departments.

What is the measurement travel and working table size of model VMS-5040H?

The metal working table size is 786 × 636 mm, the glass table size is 570 × 470 mm, and the X/Y travel range is 470 × 370 mm. The standard Z-axis travel is 200 mm, which can be customized up to 400 mm.

What is the linear scale resolution and accuracy of this device?

The linear scale resolution is 0.5 μm. The indication error is calculated as E1XY = (2.5 + L/100) μm, providing high accuracy for delicate industrial measurements.

What are the specifications of the integrated video system?

The system comes equipped with a 1/2” color CCD camera, a 0.7~4.5× zoom lens, and delivers a total magnification of 20~128× outputting to a 19.5-inch display with a resolution of 1440*900.

Is the operating computer system included in the package?

Yes, a standard configuration brand computer is included with the measuring machine system.

What are the power requirements for operating this machine?

The machine supports an AC input of 100-240V at 50/60Hz, with a base system power rating of 400W (excluding the computer system).
