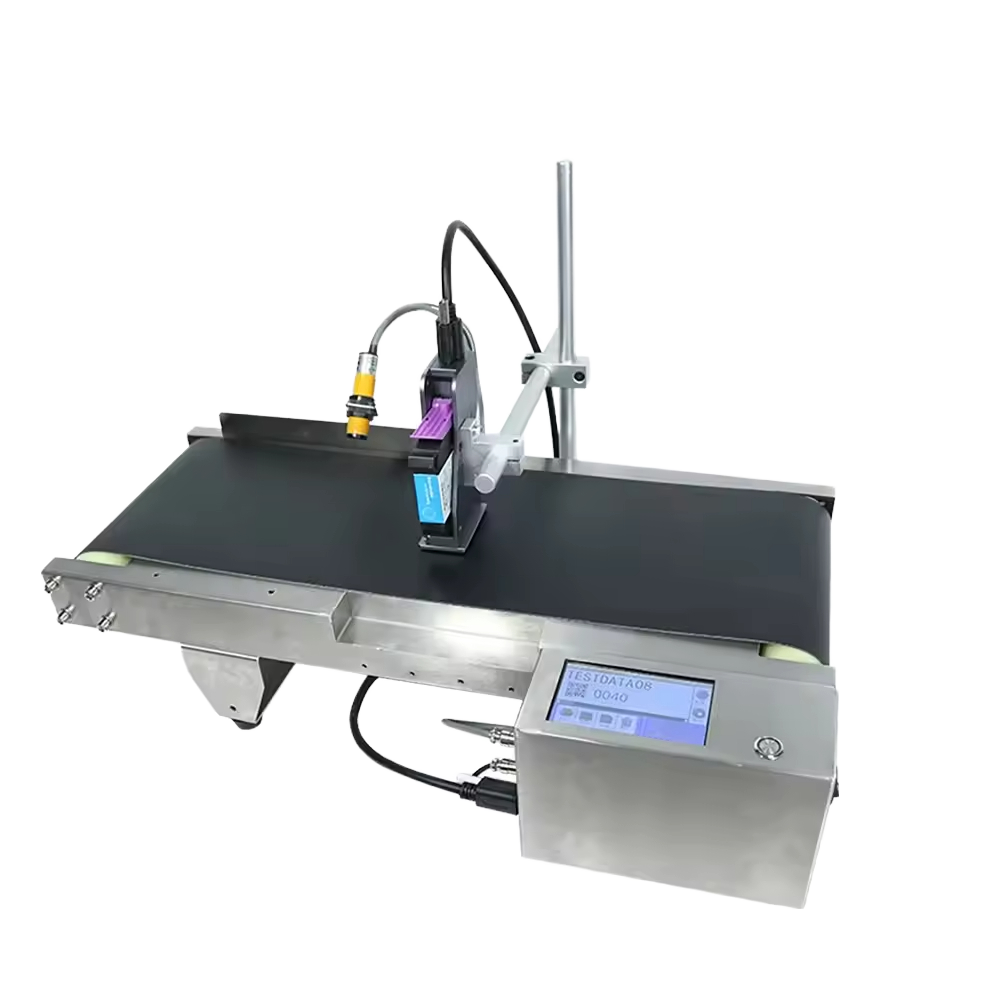

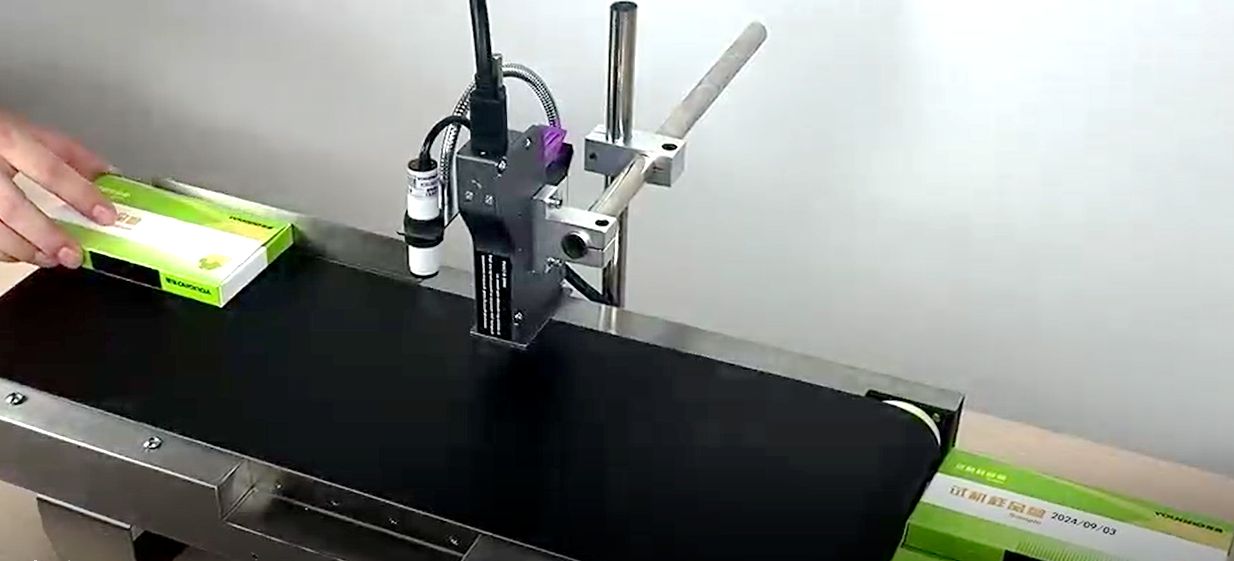

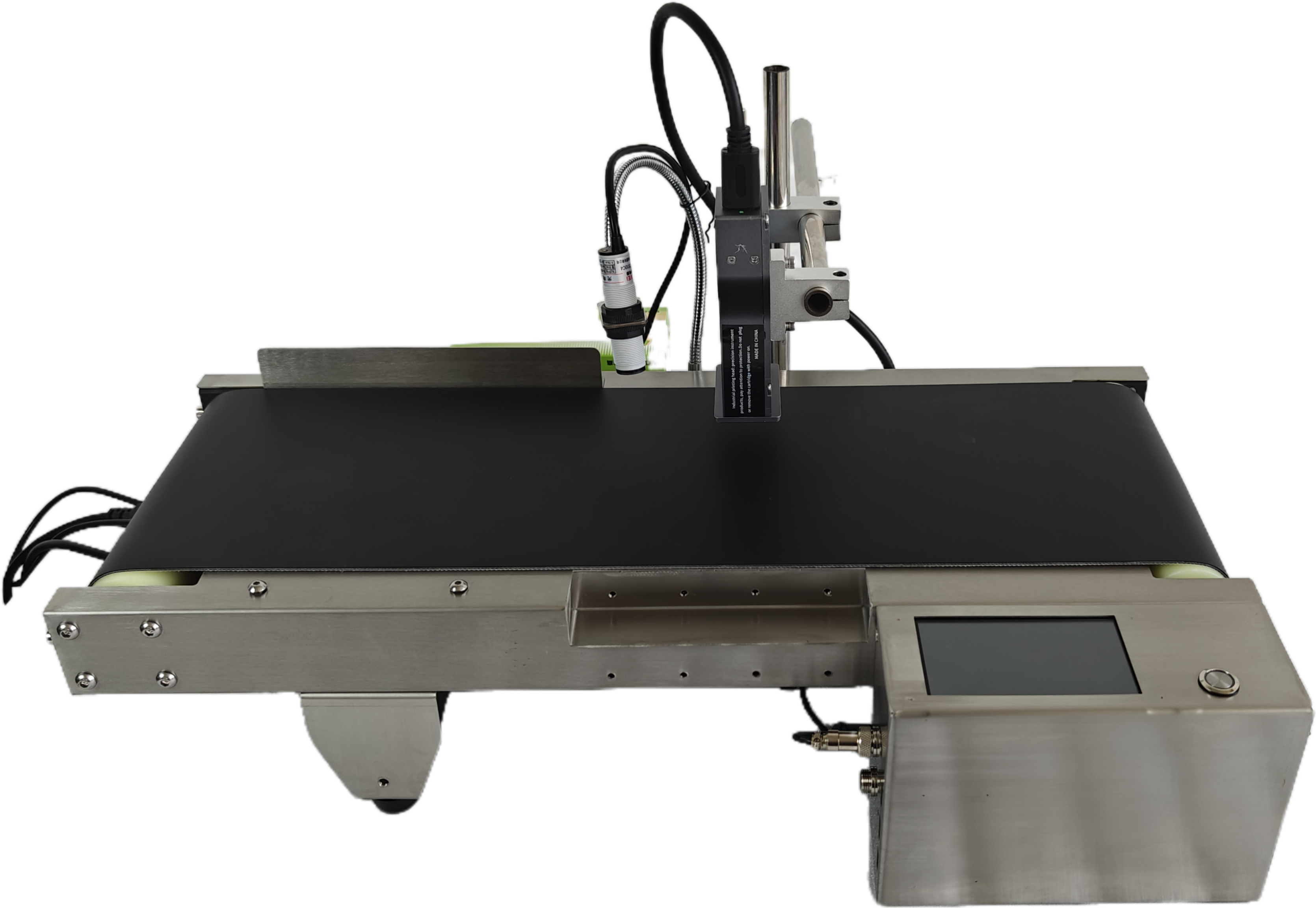

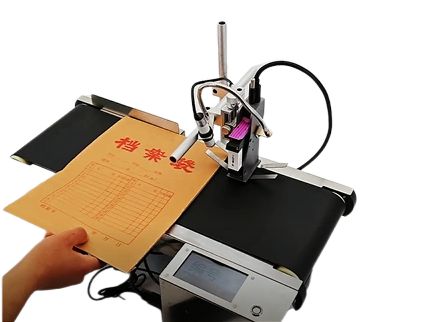

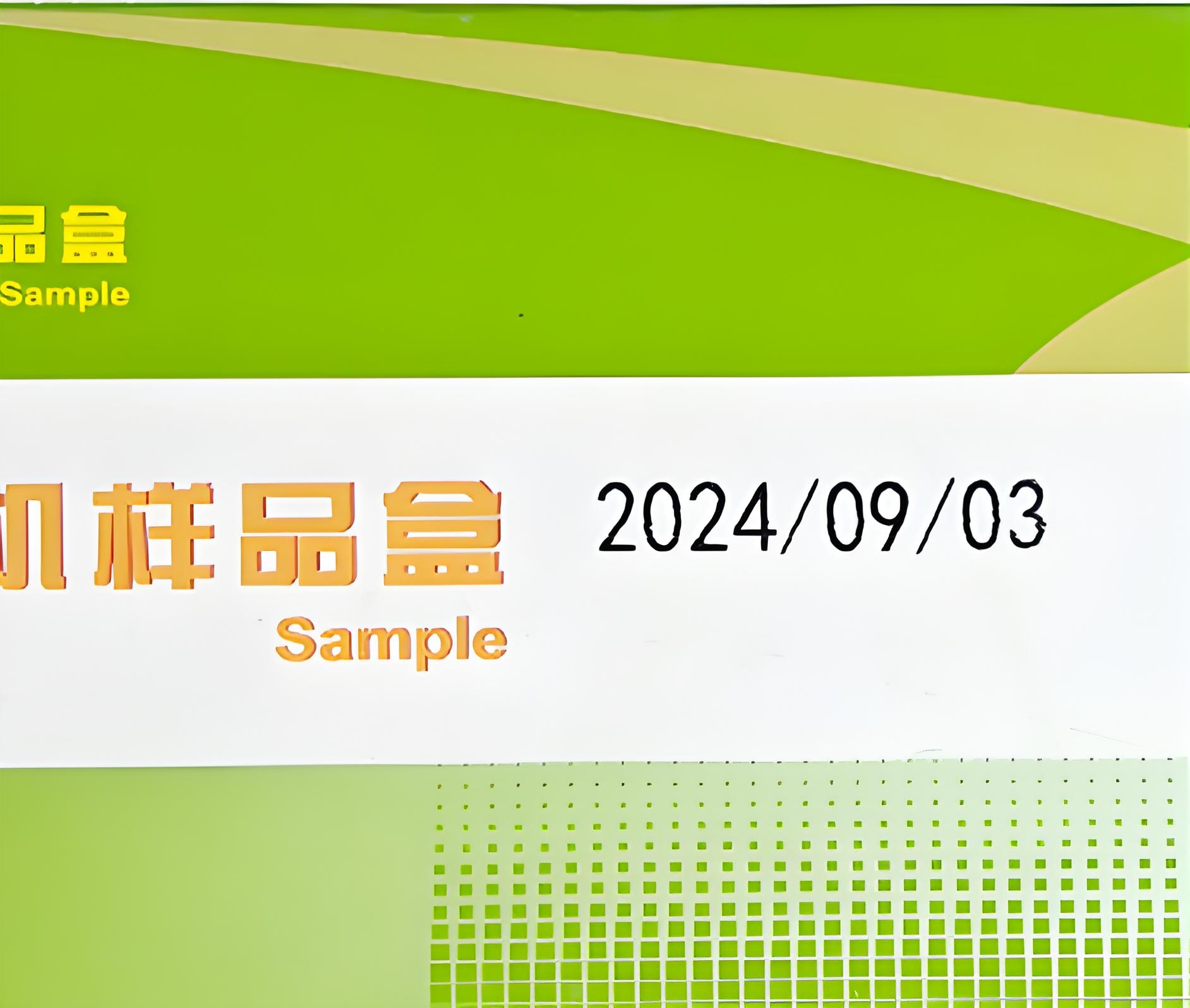

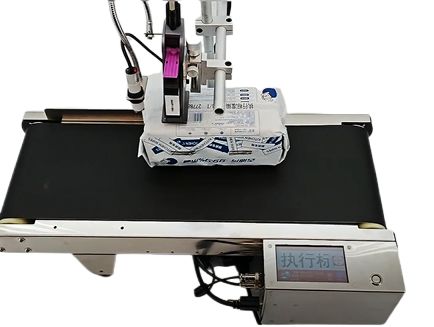

The T306 inkjet printing conveyor is a type of inkjet printing and conveying equipment. The inkjet printer is a high-resolution and high-print-speed printing system developed based on the thermal bubble inkjet technology. It can be used in conjunction with a conveyor belt to perform high-resolution and high-quality variable data printing and coding (such as text, numbers, barcodes, and images) on irregular products.
| Conveyor Inkjet Printing Machine Specifications | |
|---|---|
| Product Name | Conveyor inkjet printing machine |
| Equipment Parameters | |
| Equipment dimensions | 600mm*327mm*146mm |
| Belt speed | 5m/min--20m/min |

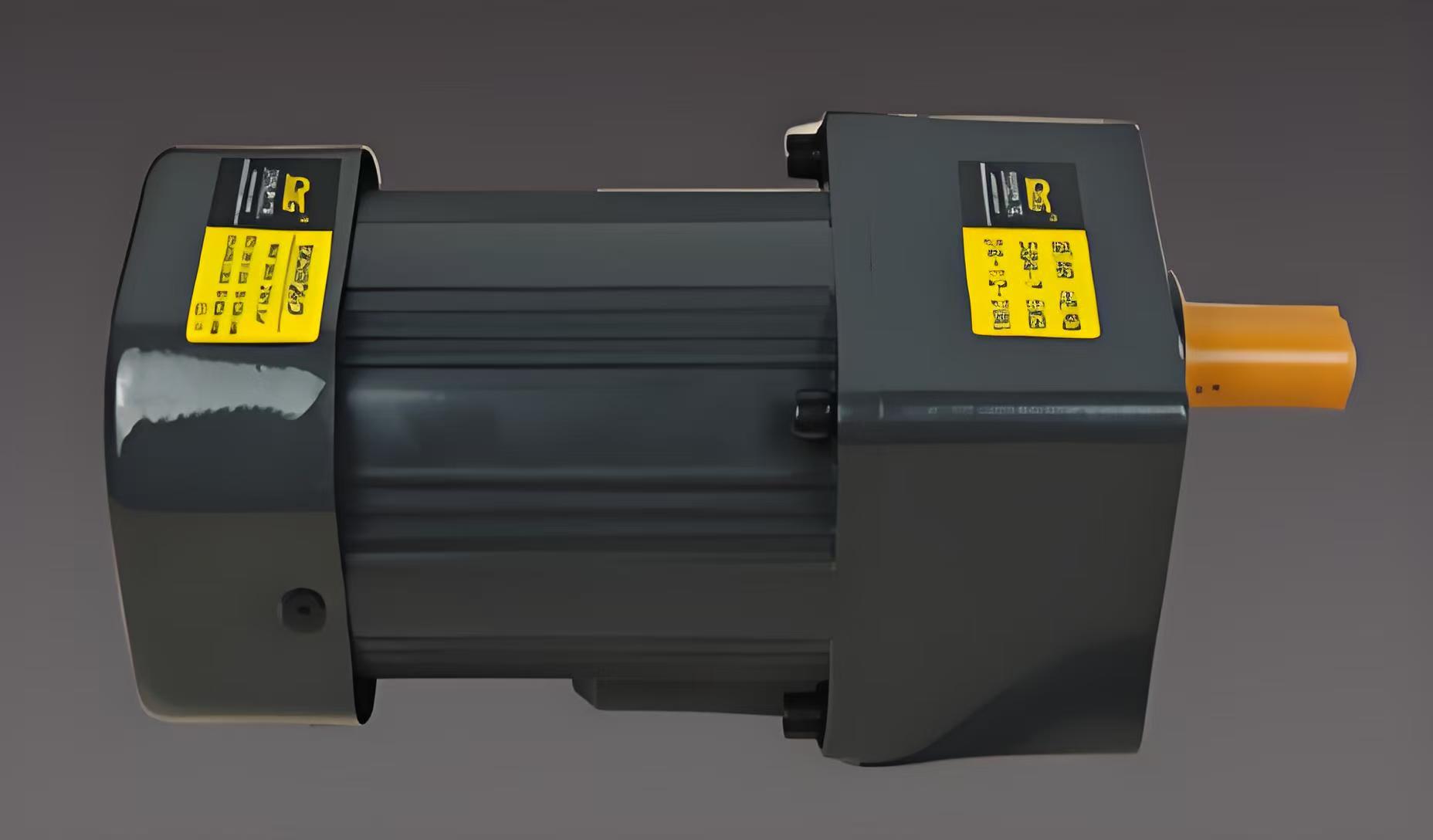

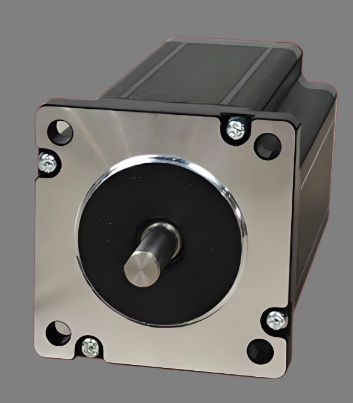

| Speed control method | Stepping motor drive |

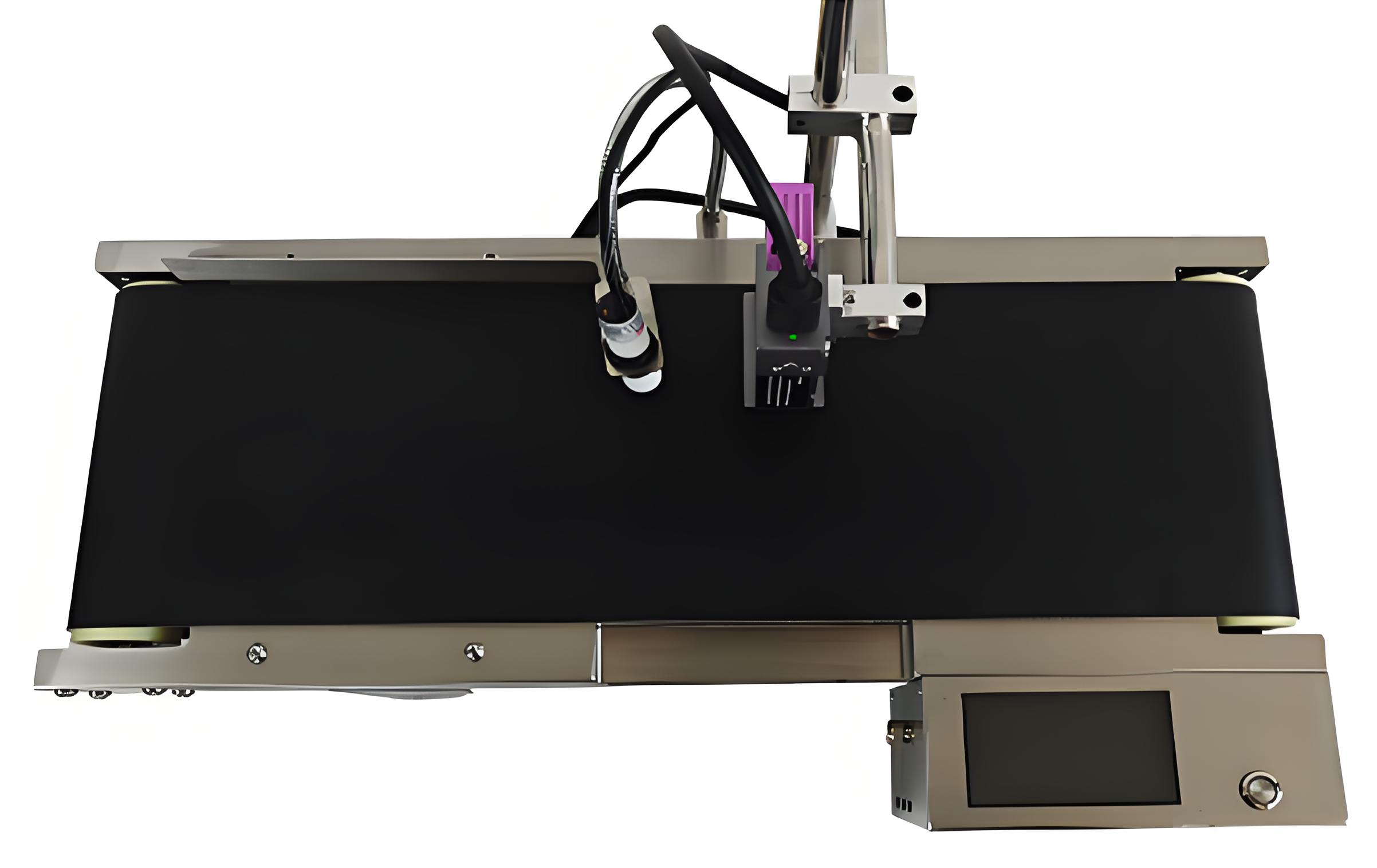

| Belt material | Black PVC |

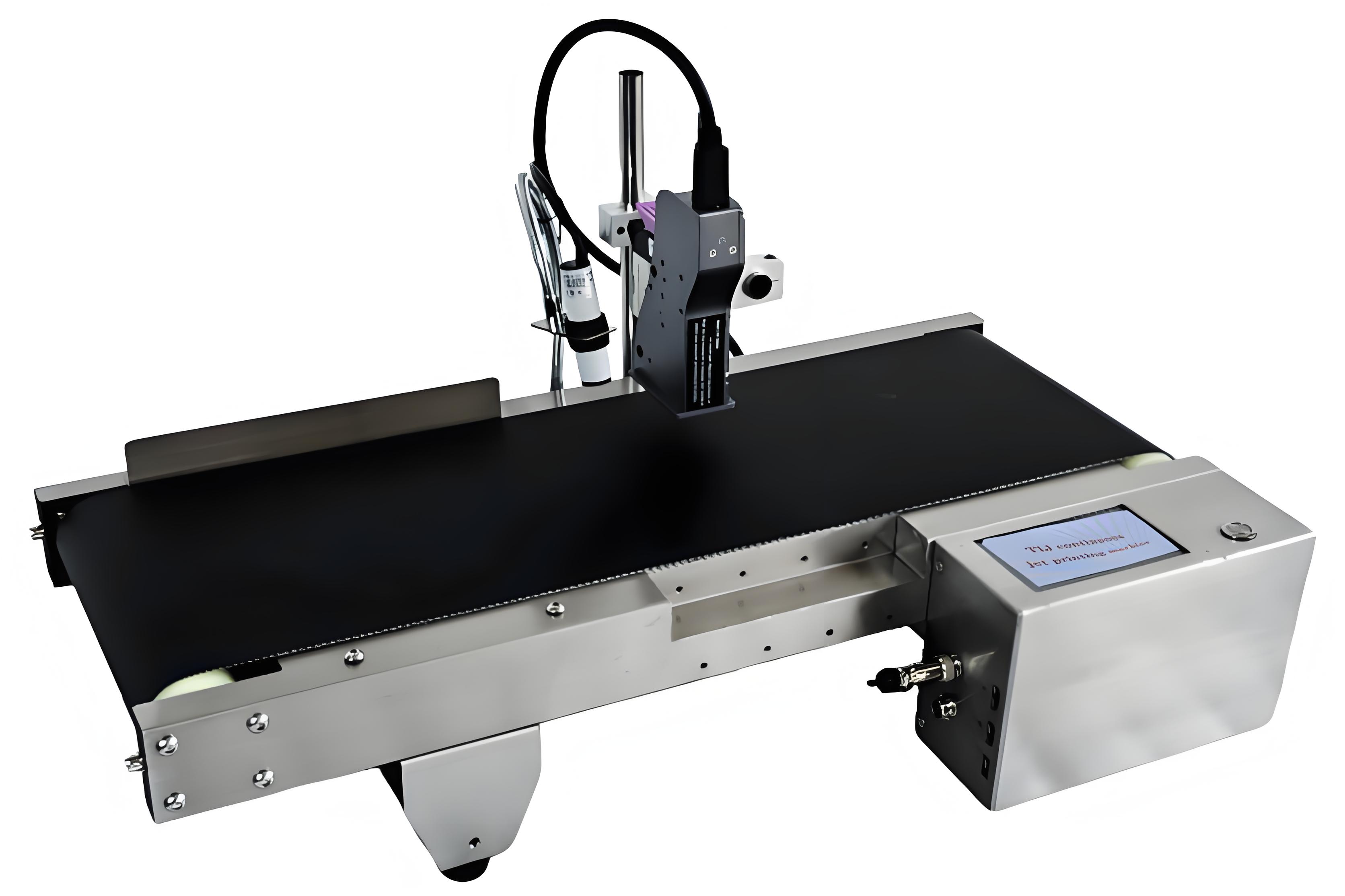

| Appearance material | Stainless steel |
| Parameters of the TIJ Inkjet Printer | |

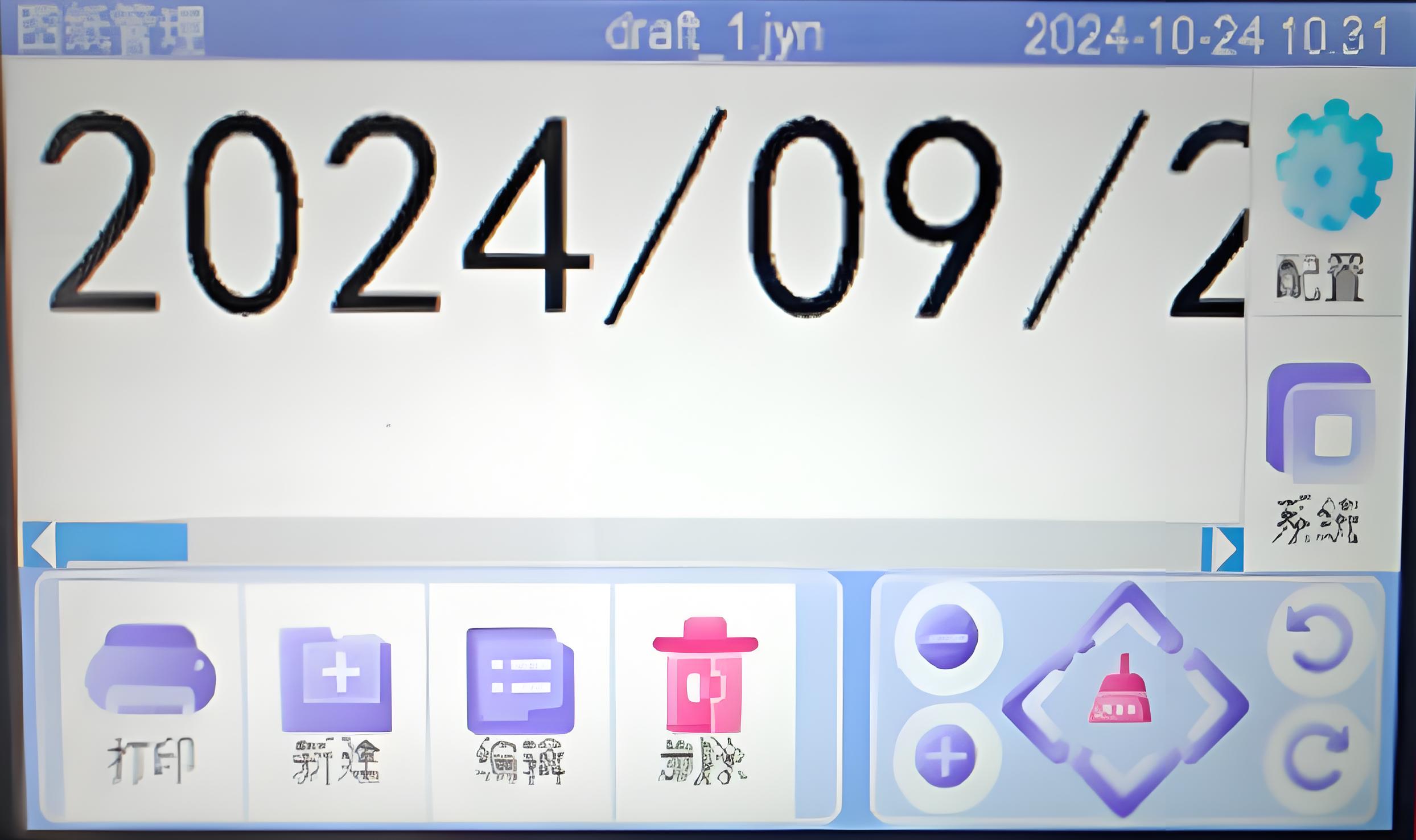

| Operation screen | 4.3-inch capacitive/resistive screen |
| Rated voltage | 110V/220V;50/60Hz |
| Processor | ARM high-speed processor |
| Printer ink cartridge model | HP ink cartridge |
| Printing type | Text, date, logo, QR code, variable data, etc. |
| Inkjet printing distance | 2-5mm is the best |
| Character height | 12.7mm / 25.4mm (optional) |
| Inkjet printing speed | 120m/min |
| External input | Import fonts and pictures via USB drive. External data orem lpsum |

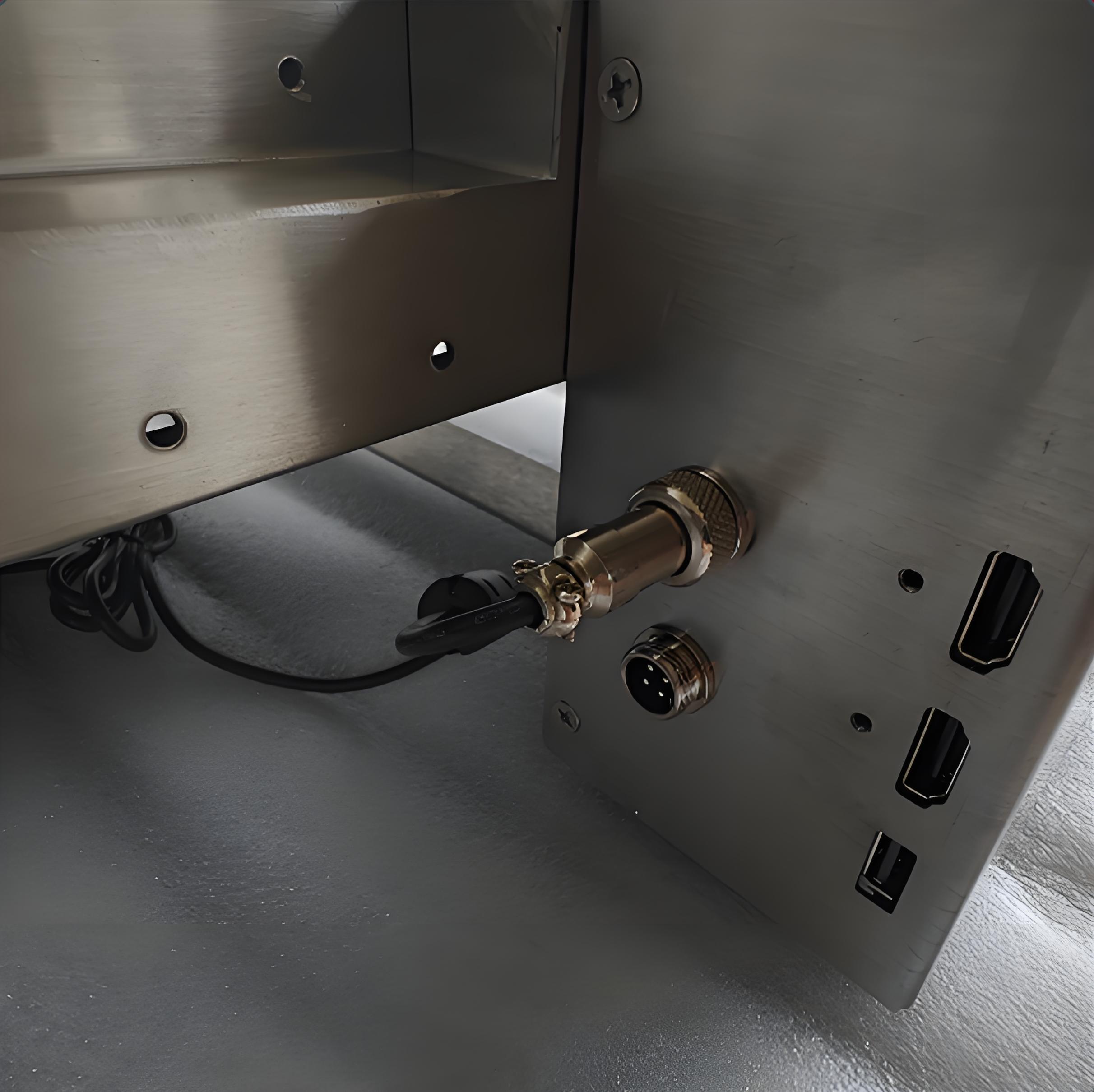

| External interface | Photoelectric, encoder, alarm, USB |
| Operating language | Chinese, Traditional Chinese, English, Japanese, Arabic, French, Korean, Italian, Spanish, Portuguese, German, Dutch, Turkish, etc. |
| Equipment maintenance | Automatic cleaning, maintenance-free |
