| Medium | The vast majority of single-phase liquids contain less than 5% particles or bubbles. |
| Pipe material | Stainless steel, PVC, carbon steel |
| Ambient temperature | -40°C ~ +60°C |
| Fluid temperature | -20°C ~ +120°C |
| Explosion-proof rating | Explosion-proof type Exd II BT4 |
| Flow rate range | Nominal accuracy flow rate range 0.1 ~ 12.5 m/s |
| Measurement Accuracy | ±0.5% |
| Sensitivity | 0.001 m/s |
| Measurement repeatability | ±0.2% |
| Protection class | IP65 |
| Power Supply | 12V ~ 24V DC, 0.5A |
| Electrical interface | Waterproof head 2 * M20 * 1.5 |
| LCD Display | 128x64 dot matrix LCD |
| Serial Communication | RS485, MODBUS RTU protocol |

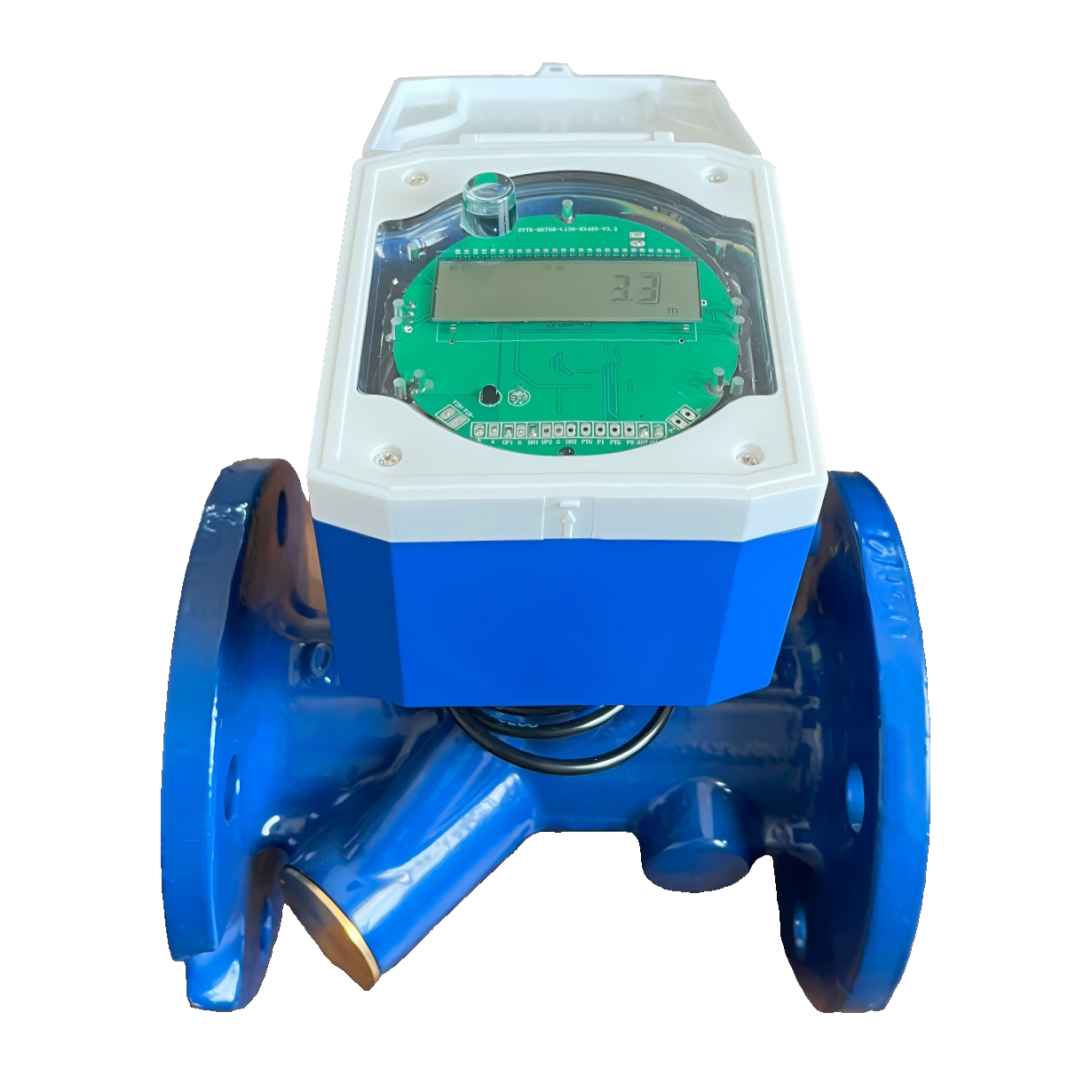

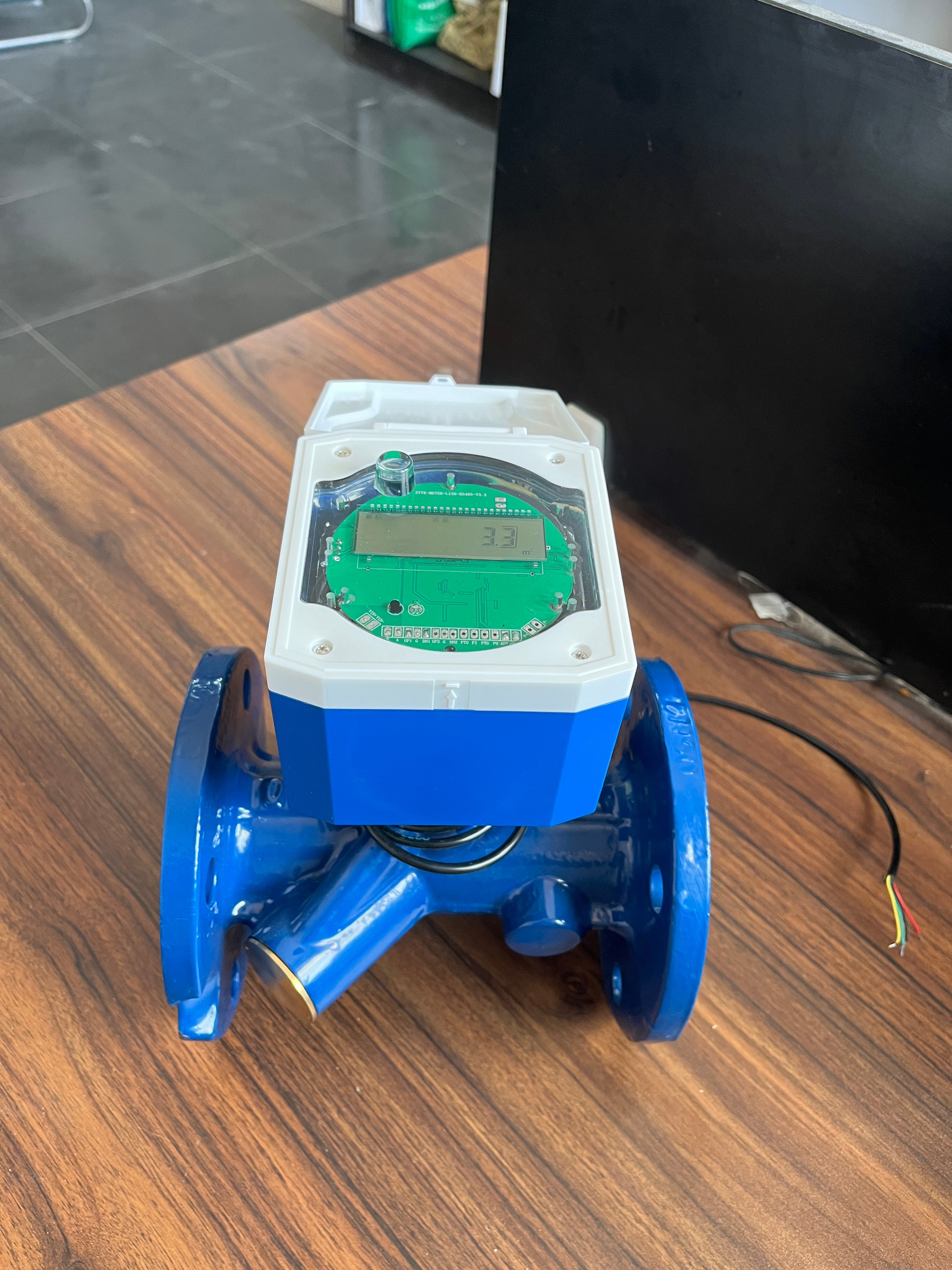

Equipped with a high-definition 128*64 dot matrix LCD screen for clear reading and parameter visualization.
Offers a wide nominal accuracy flow rate range from 0.1 to 12.5 m/s to cover various operational scenarios.
Designed for seamless installation with multiple pipe materials including Stainless steel, PVC, and carbon steel.
The flow meter is designed for the vast majority of single-phase liquids that contain less than 5% particles or bubbles, ensuring accurate and stable measurements.
This flow meter is highly compatible with common pipeline materials, including Stainless steel, PVC, and carbon steel.
It features a high measurement accuracy of ±0.5% with a measurement repeatability of ±0.2% and a sensitivity threshold down to 0.001 m/s.
Yes, it features an explosion-proof rating of Exd II BT4 and a dust/water protection class of IP65, making it suitable for demanding industrial applications.
The system supports standard industrial serial communication using the RS485 interface running on the MODBUS RTU protocol.
The device operates on a standard direct current voltage range of 12V to 24V DC with a working current of 0.5A.
