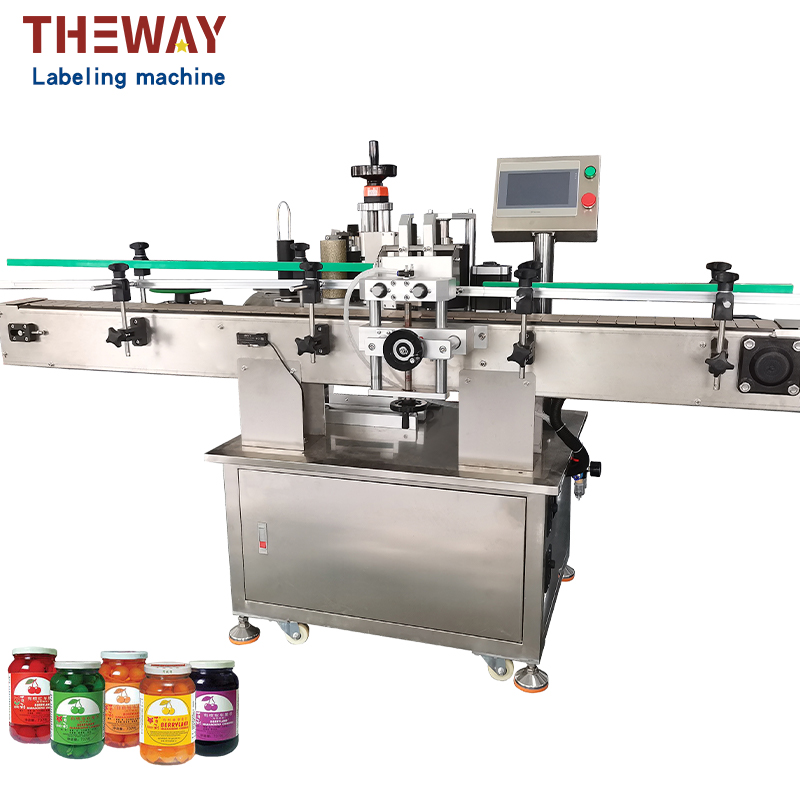

Dw212 Food Factory-specific Jam and Juice Can Labeling Machine Can Be Equipped With an Automatic Date Coding Labeling Machine
Dw212 Food Factory-specific Jam and Juice Can Labeling Machine Can Be Equipped With an Automatic Date Coding Labeling Machine
Dw212 Food Factory-specific Jam and Juice Can Labeling Machine Can Be Equipped With an Automatic Date Coding Labeling Machine
Dw212 Food Factory-specific Jam and Juice Can Labeling Machine Can Be Equipped With an Automatic Date Coding Labeling Machine
1 / 4
Dw212 Food Factory-specific Jam and Juice Can Labeling Machine Can Be Equipped With an Automatic Date Coding Labeling Machine
Dw212 Food Factory-specific Jam and Juice Can Labeling Machine Can Be Equipped With an Automatic Date Coding Labeling Machine
Dw212 Food Factory-specific Jam and Juice Can Labeling Machine Can Be Equipped With an Automatic Date Coding Labeling Machine
Dw212 Food Factory-specific Jam and Juice Can Labeling Machine Can Be Equipped With an Automatic Date Coding Labeling Machine

Dw212 Food Factory-specific Jam and Juice Can Labeling Machine Can Be Equipped With an Automatic Date Coding Labeling Machine

Send Inquiry

Product Description

Products Description

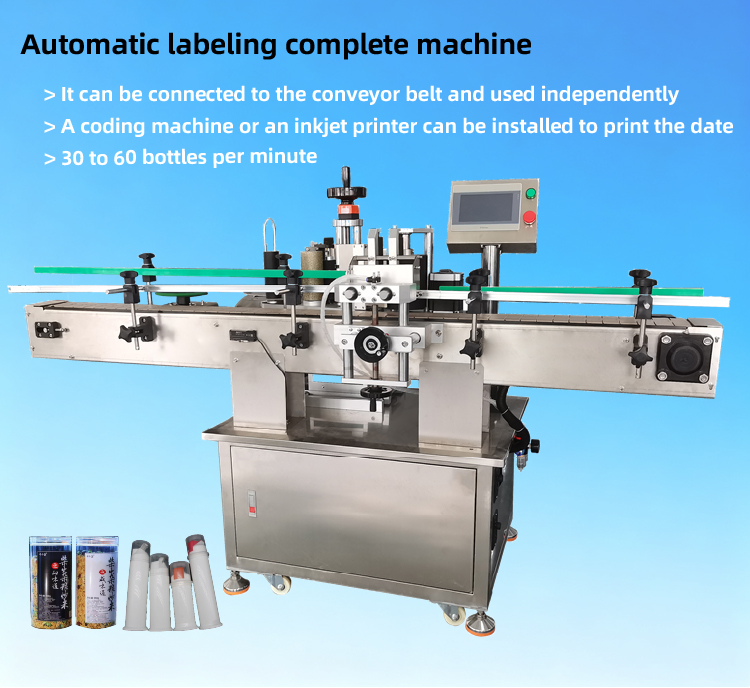

Automatic Bottle Labeling Machine
Bottle Labeling
This labeling machine labels stickers by the pressing belt during bottle transporting. This kind of labeling method can improves labeling efficiency. It is good for single side labeling on round bottles. This machine is widely used in food, daily chemical, cosmetics industries.
Labeling Machine Dimension Drawing

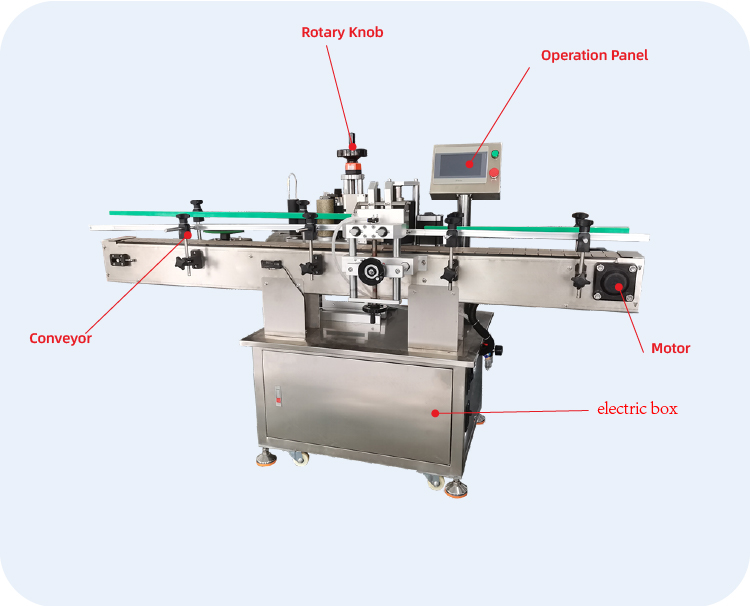

Labeling Machine Structure
Technical Specifications
Machine Model DW211
Voltage 110/220V 50-60HZ 1100W
Label Length 30-300mm
Label Width 30-150mm
Suitable Bottle Diameter φ20-120mm
Outside Diameter Of Standard Roll φ280mm
Inside Diameter Of Standard Roll φ76mm
Labeling Accuracy ±1.0mm
Conveying Speed 16m/min
Marking Speed 5 -19m/min
Labeling Speed 30-60 bottles/min
Machine Weight About 250kg
Packaging Size About 2110*1000*1450mm
Package Weight About 296KG
Labeling Details View
Roll Feeding Mechanism

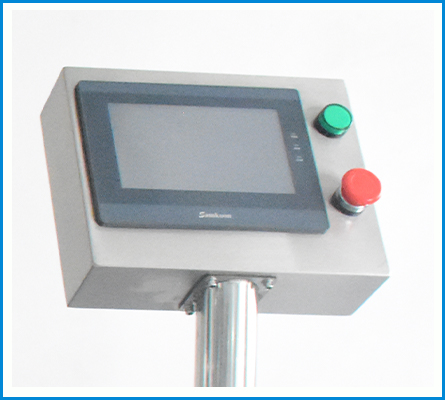

Control Panel
Simple Operation Panel
Simple operation panel can be used to adjust and control working data, easy to operate and reduce working error greatly.

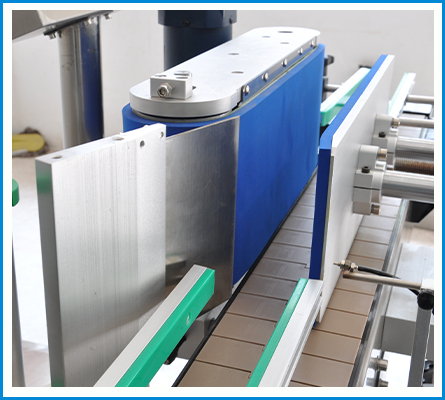

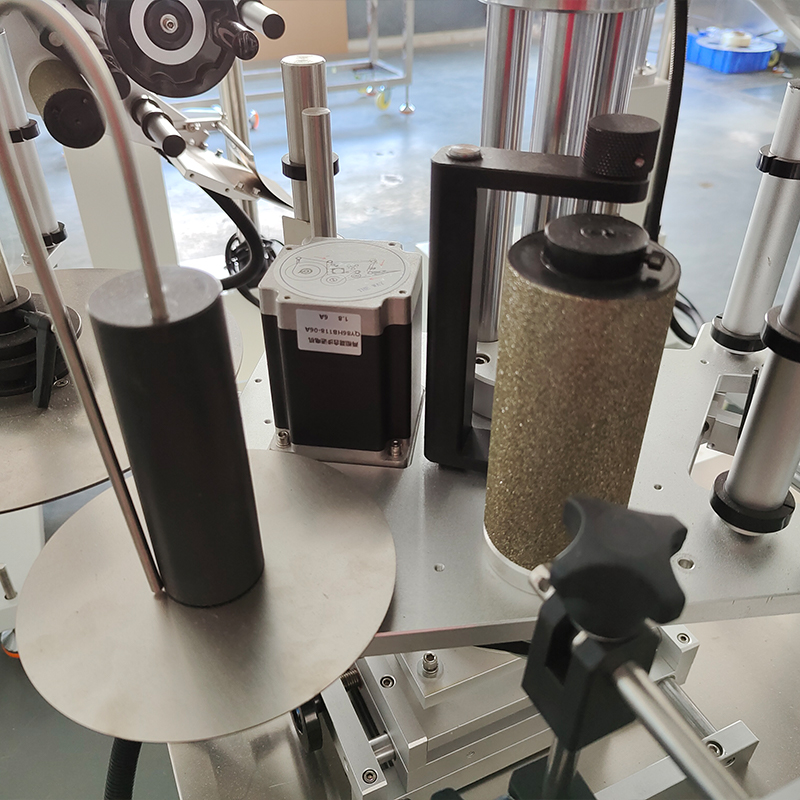

Label Separating Mechanism
Efficient Label Separator
The label separating plate will separate stickers and stickers will be labeled by the labeling belt during transporting. The soft labeling belt can ensure there is no bubble under stickers, improves labeling quality.

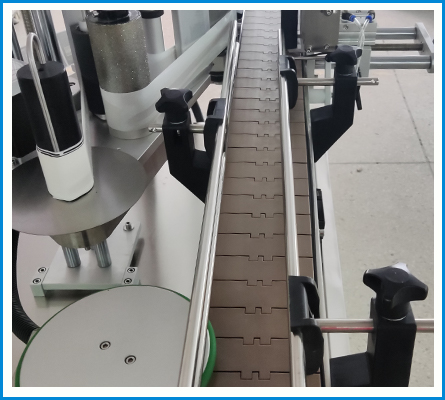

Conveyor Belt
Adjustable Conveyor
The conveyor is used to transfer round bottles. The working speed is adjustable, operator can adjust the speed according to their need. The width of feeding inlet can be adjusted according to bottle diameter.

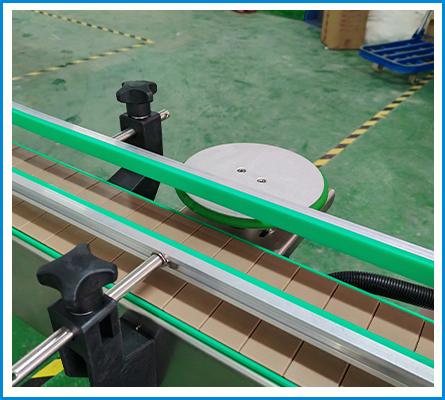

Separating Device
Bottle Separating Device
Bottle separating device can separate passing through bottles, help to control the bottle distance, reduce labeling error.
Product Application Display
Quality Labeling Samples

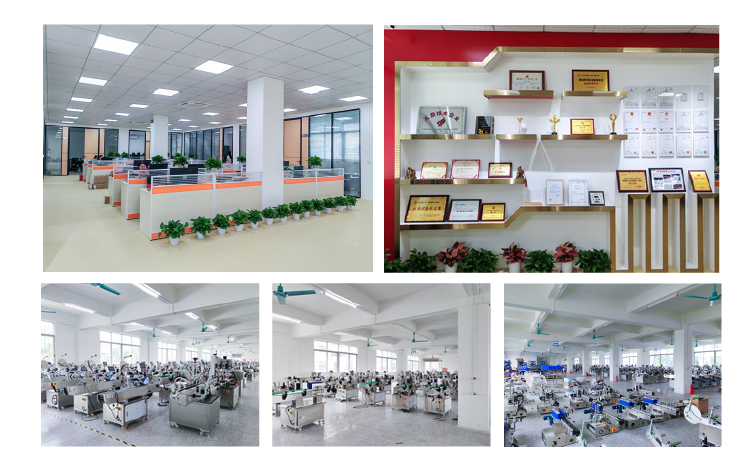

Manufacturing Center
Assembly Shop
Patent Certificates
Exhibition Hall

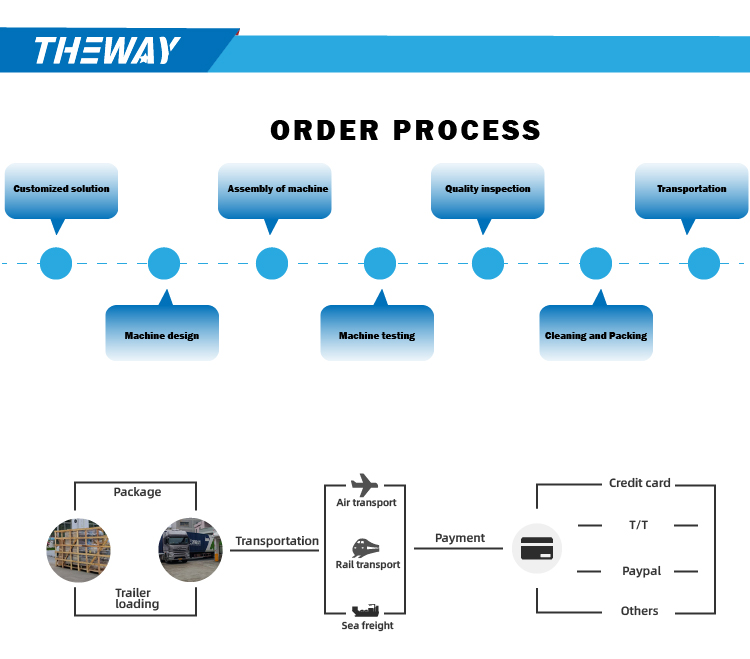

Secure Logistics and Delivery
Frequently Asked Questions (FAQ)
What types of bottles is this labeling machine suitable for?
This labeling machine is designed for single-side labeling on round bottles. It works efficiently with bottle diameters ranging from 20mm to 120mm, making it ideal for food, cosmetics, and daily chemical packaging.
What is the labeling speed and accuracy of the DW211?
The DW211 labeling machine features a high labeling speed of 30 to 60 bottles per minute with an outstanding labeling accuracy of ±1.0mm, ensuring uniform and professional packaging quality.
Are the conveyor speed and spacing adjustable?
Yes, the conveyor working speed is fully adjustable to match different production requirements. Additionally, the bottle separating device controls the distance between bottles, and the width of the feeding inlet adjusts easily to fit the exact diameter of your bottles.
Does this machine prevent bubbles during the labeling process?
Yes, the machine uses a soft labeling pressing belt that presses stickers during transport. This design ensures that labels are smoothly applied and that there are no air bubbles trapped underneath, maximizing overall labeling quality.

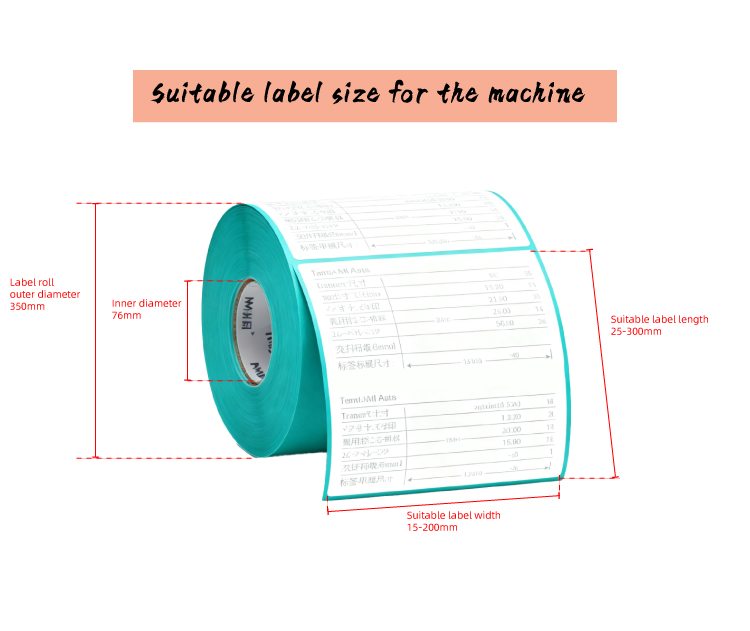

What label roll dimensions are compatible with this machine?
The DW211 labeling machine is compatible with standard label rolls. It supports an inside standard roll diameter of 76mm and can handle an outside standard roll diameter of up to 280mm.
