Factory Automatic Vertical Round Bottle Sticker Labeling and Coding Machine

Product Description

📦 Product Overview

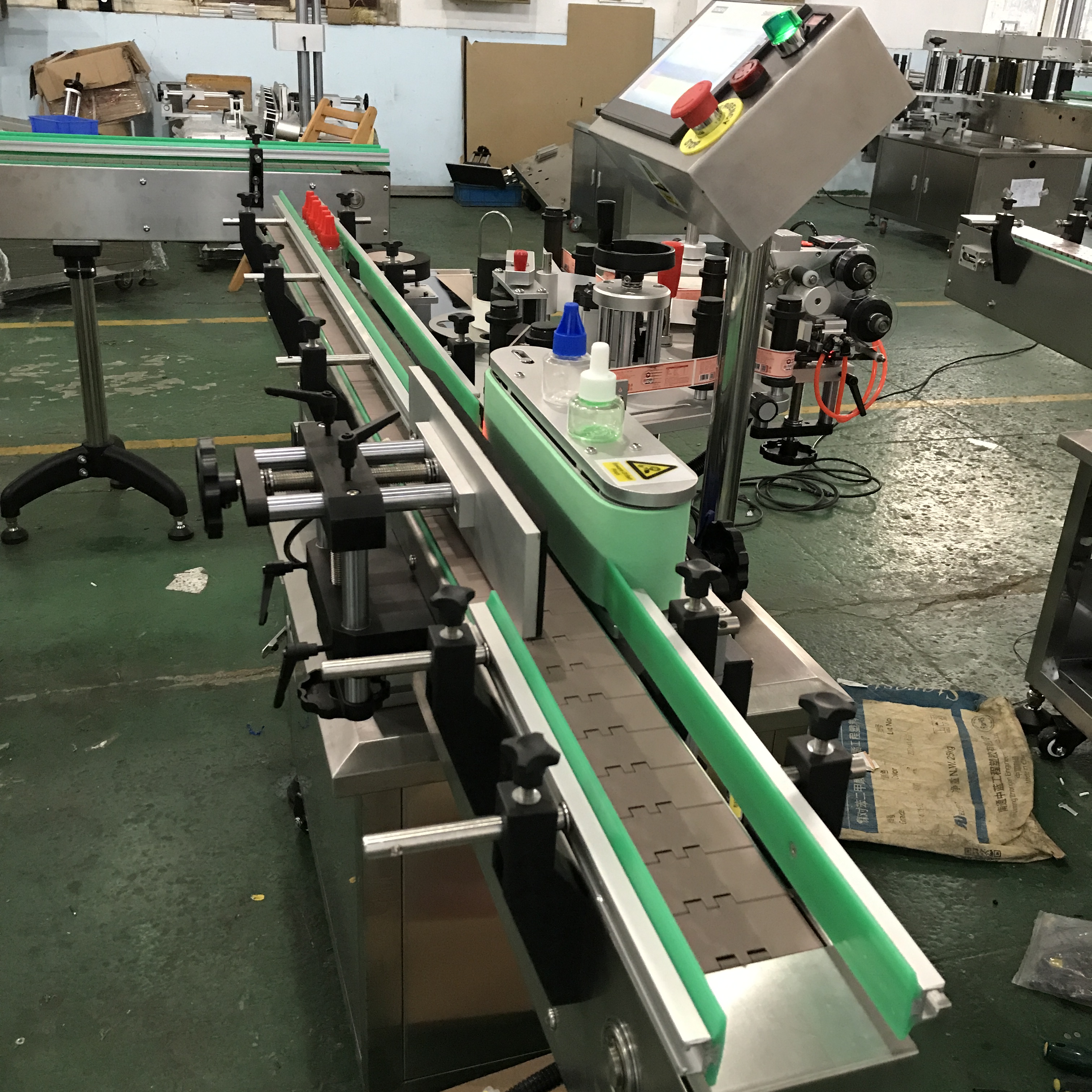

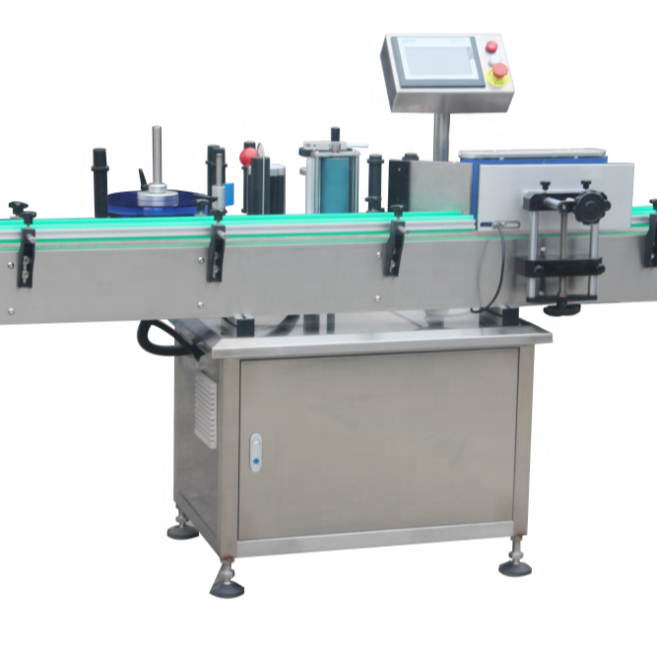

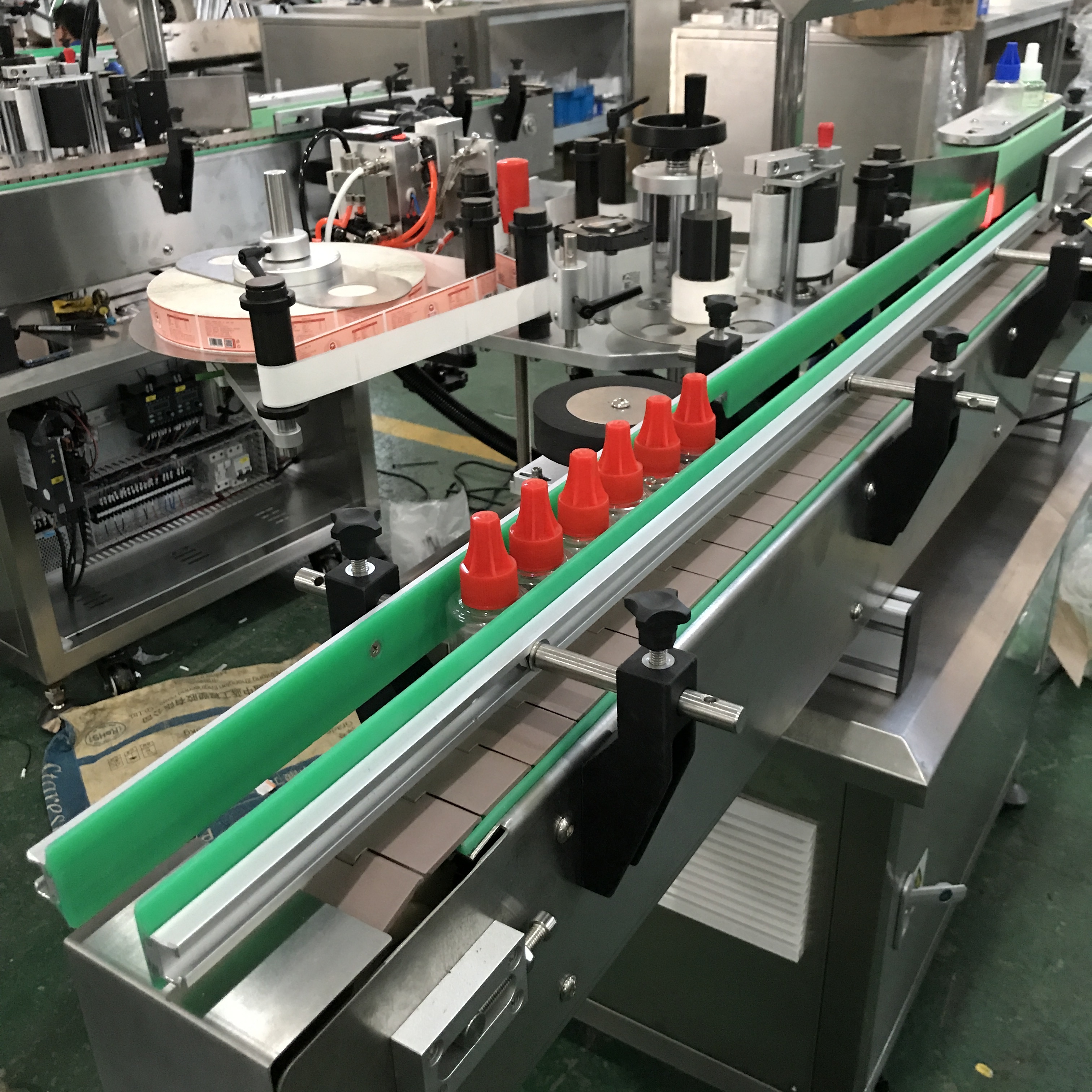

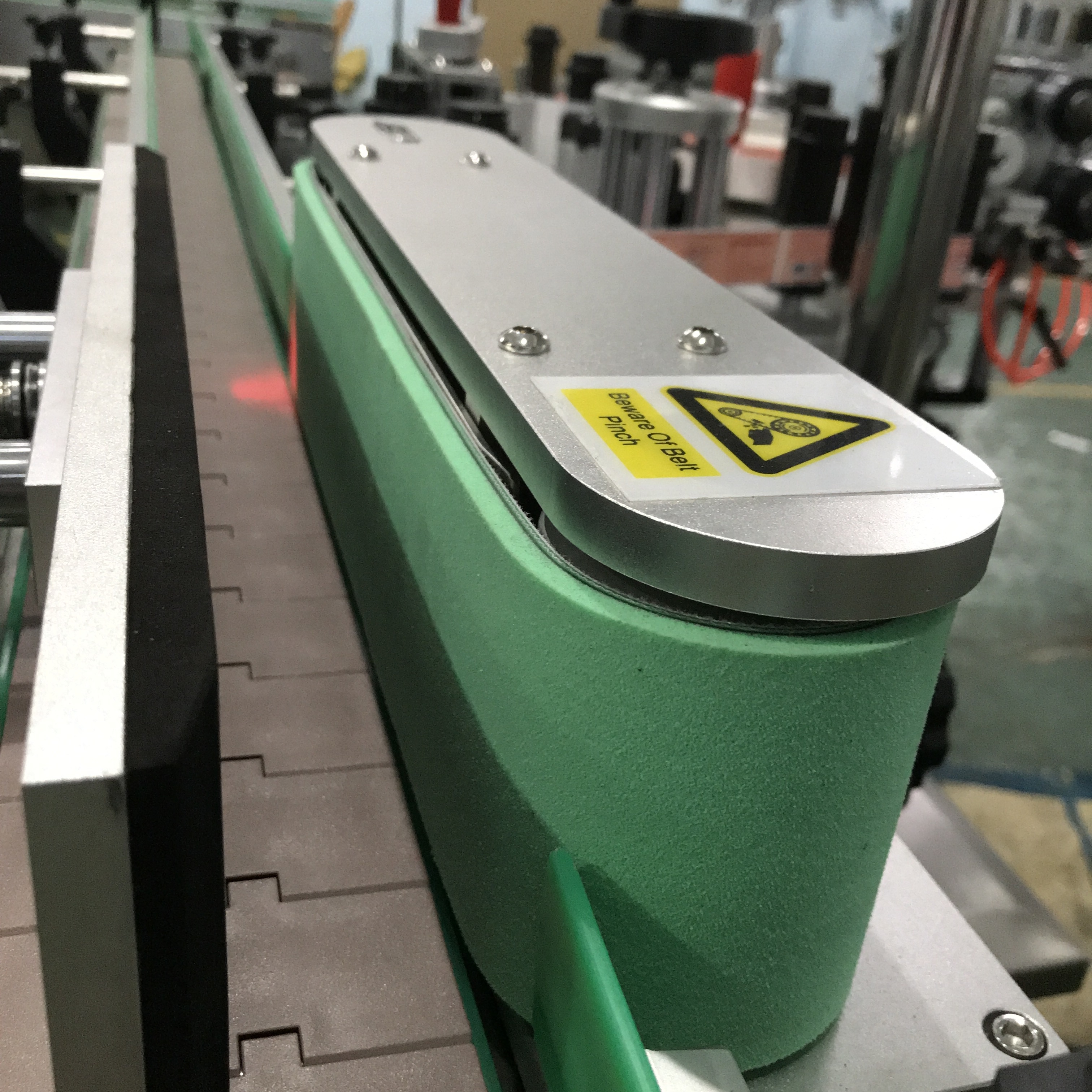

Vertical Round Bottle Sticker Labeling Machine

The Vertical round bottle labeling machine is designed to achieve reasonable production goals. The labeling process is automated, and it’s easy to operate, fast in production, with unified and tidy labeling position. It is suitable for round container labeling in the pharmaceutical, chemical, and food industries, and can be used for full-circle labeling and half-circle labeling.

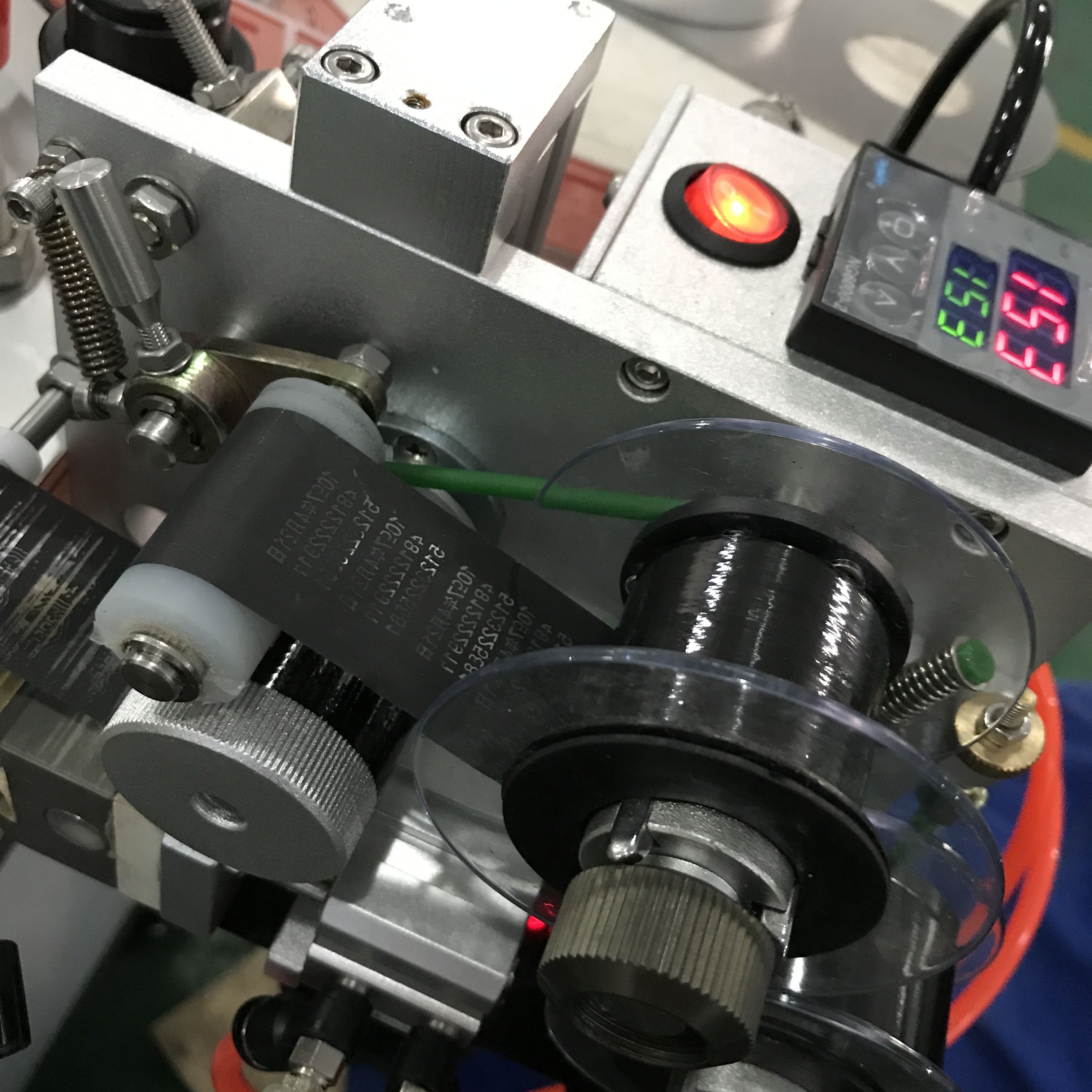

Optional ribbon printer and inkjet printer can label and print production batch number, production date and other information at the same time. Realize the integration of labeling and coding, reduce packaging procedures and improve production efficiency.

💡 Features at a Glance
Simple adjustment
Automatic bottle separation
Automatic shutdown & counting function

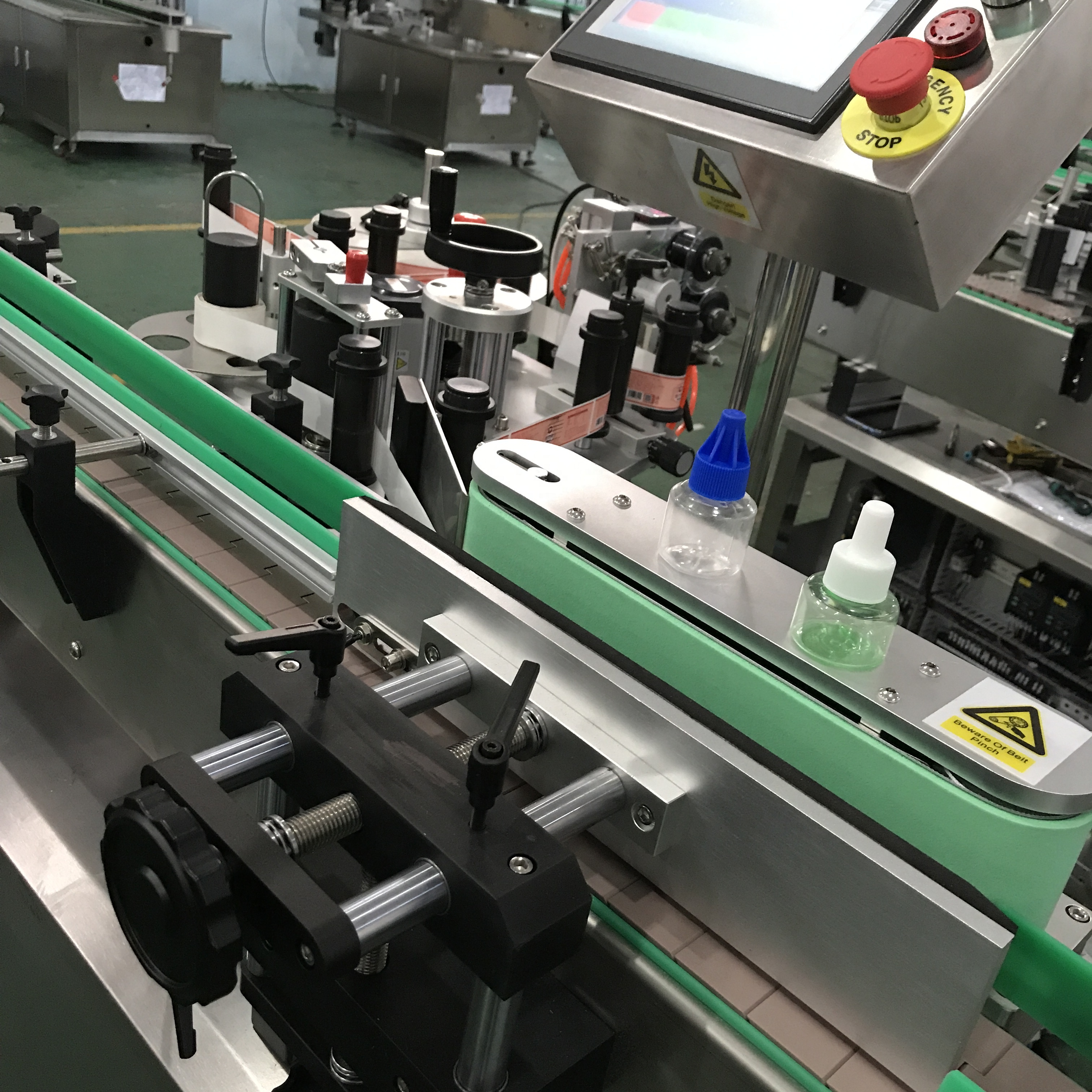

Color touch screen control
High stability
Safe and hygienic design
⚙ Technical Details
📊 Product Specifications
VoltageAC220V 50/60HZ
Power Consumption980W
Labeling Speed40-200 bottles/min (Adjustable)
Labeling Accuracy±1mm
Bottle Diameter25-120mm / Height 20mm-300mm
Label SpecsHeight 10-150mm / Length 15-300mm
Roll Inner DiaΦ76mm (Max Outer Φ300mm)
Weight200KG
Dimensions1950X1100X1300mm
Conveyor WidthCustomizable by bottle diameter
🛠 Product Configuration
🌍 Global Network
🏆 Successful Projects
🔗 Related Equipment
Frequently Asked Questions
Q1: What types of containers is this machine suitable for? A: It is specifically designed for round containers in pharmaceutical, chemical, and food industries, supporting both full-circle and half-circle labeling.
Q2: Can the machine print production dates or batch numbers? A: Yes, it can be equipped with an optional ribbon printer or inkjet printer to realize the integration of labeling and coding.
Q3: What is the maximum labeling speed? A: The speed is adjustable between 40-200 bottles per minute, depending on the object size and label length.
Q4: How accurate is the labeling process? A: The machine offers high precision with an accuracy of ±1mm, depending on product characteristics like hardness and roundness.

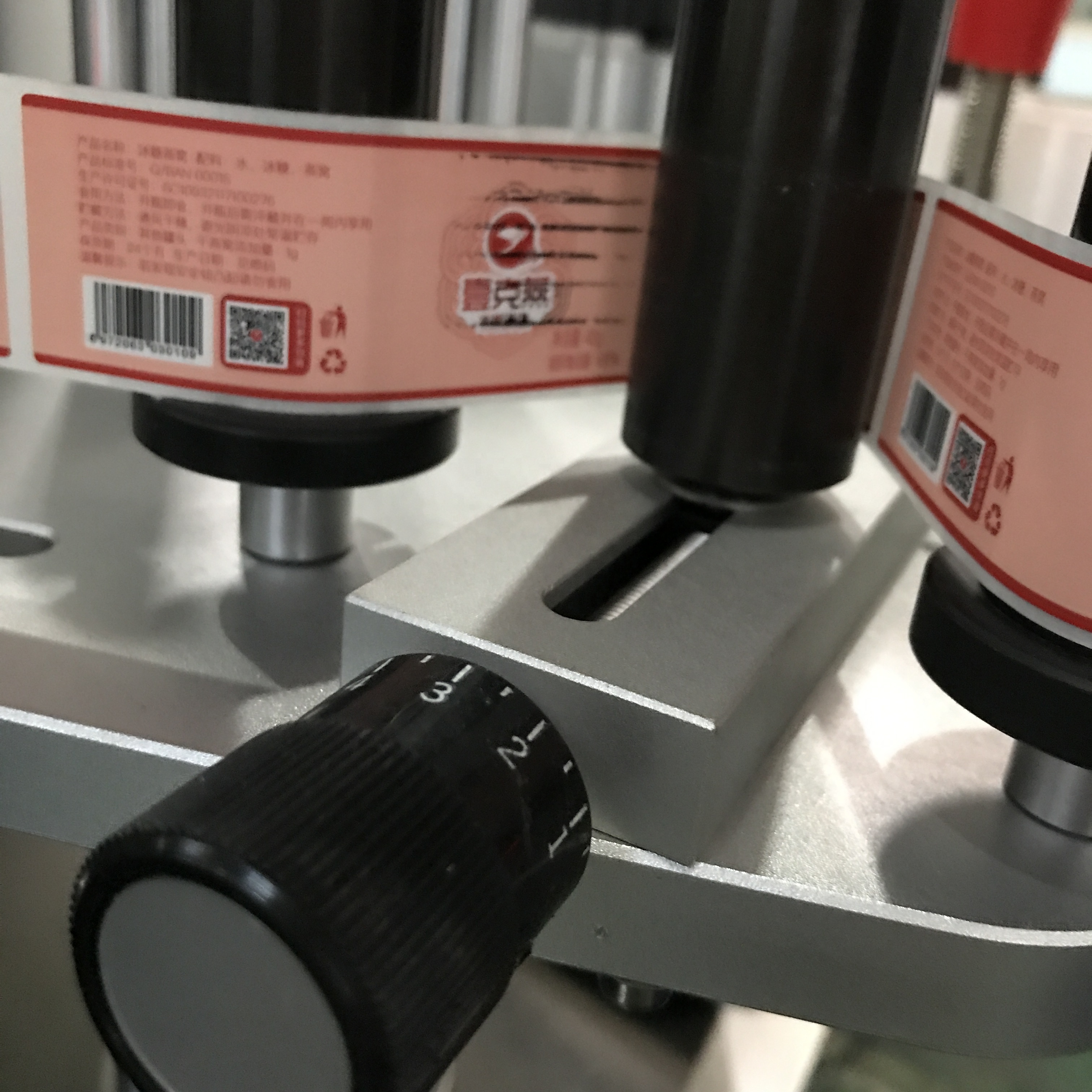

Q5: Is the machine easy to adjust for different bottle sizes? A: Yes, it features simple adjustment mechanisms and the label stripping position can be fine-tuned quickly for easy changeovers.

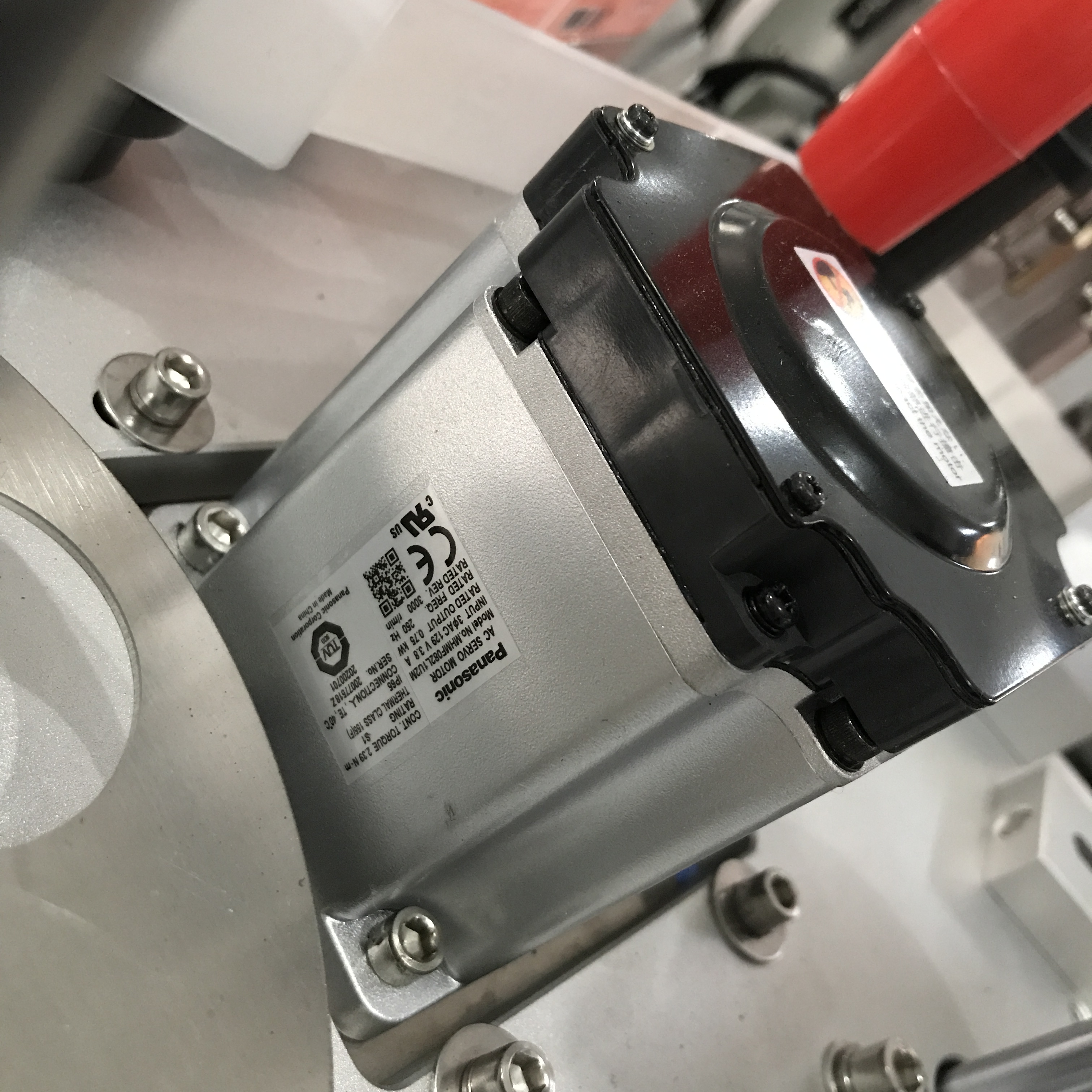

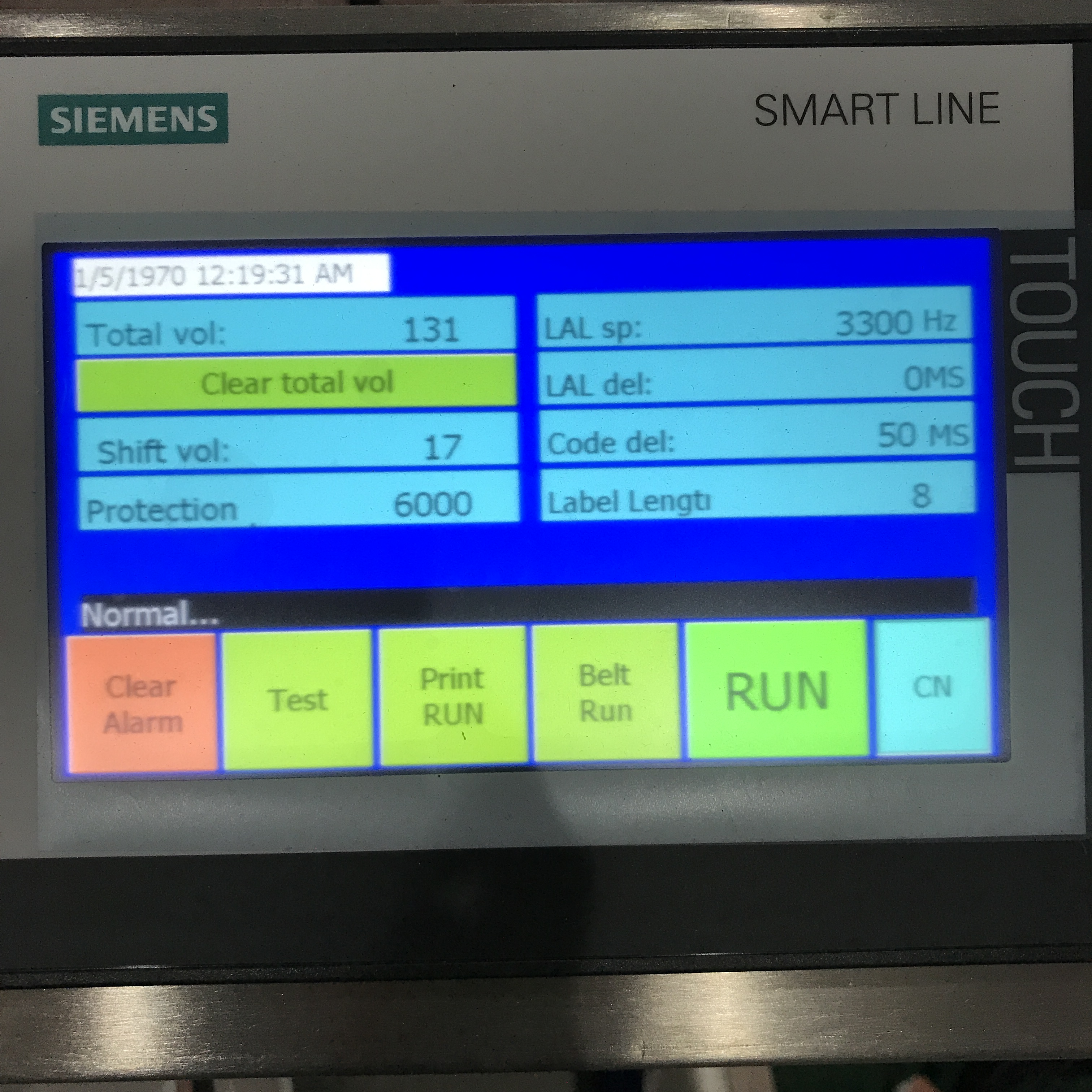

Q6: What key components are used in this machine? A: The machine is built with high-quality components including a Siemens PLC, HMI interface, and Matsushita labeling motors.
