Automatic Pig Feeder Intelligent Feeding System Accurately Controls Feed in Real-Time Pig Farming Equipment

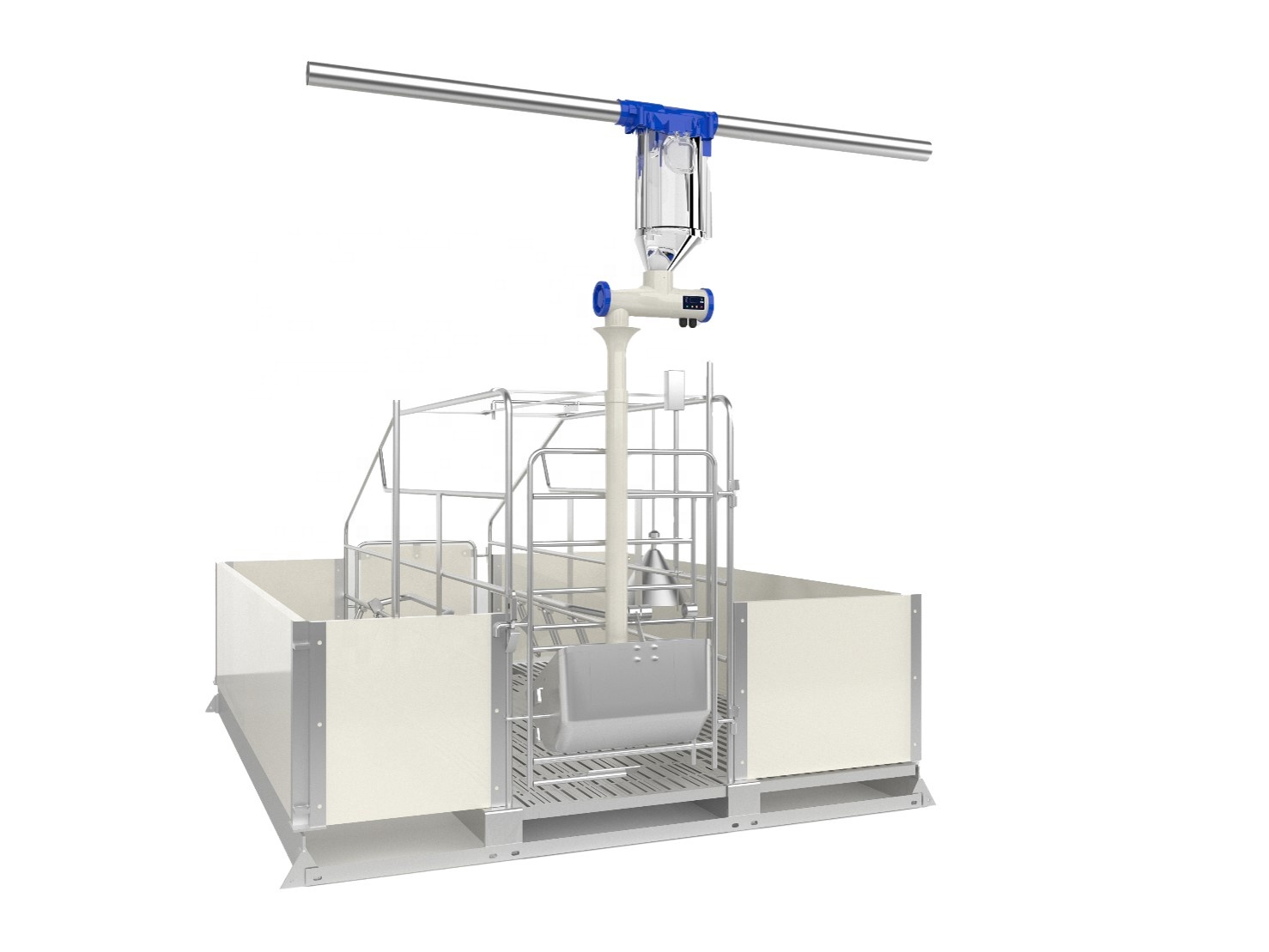

Pig Farm Intelligent Feeding System

An intelligent management and precision feeding system suitable for large-scale pig farms, which perfectly solves customers' breeding problems and improves breeding efficiency.

Tolerance Accuracy: Particles 3% and powder 1%.

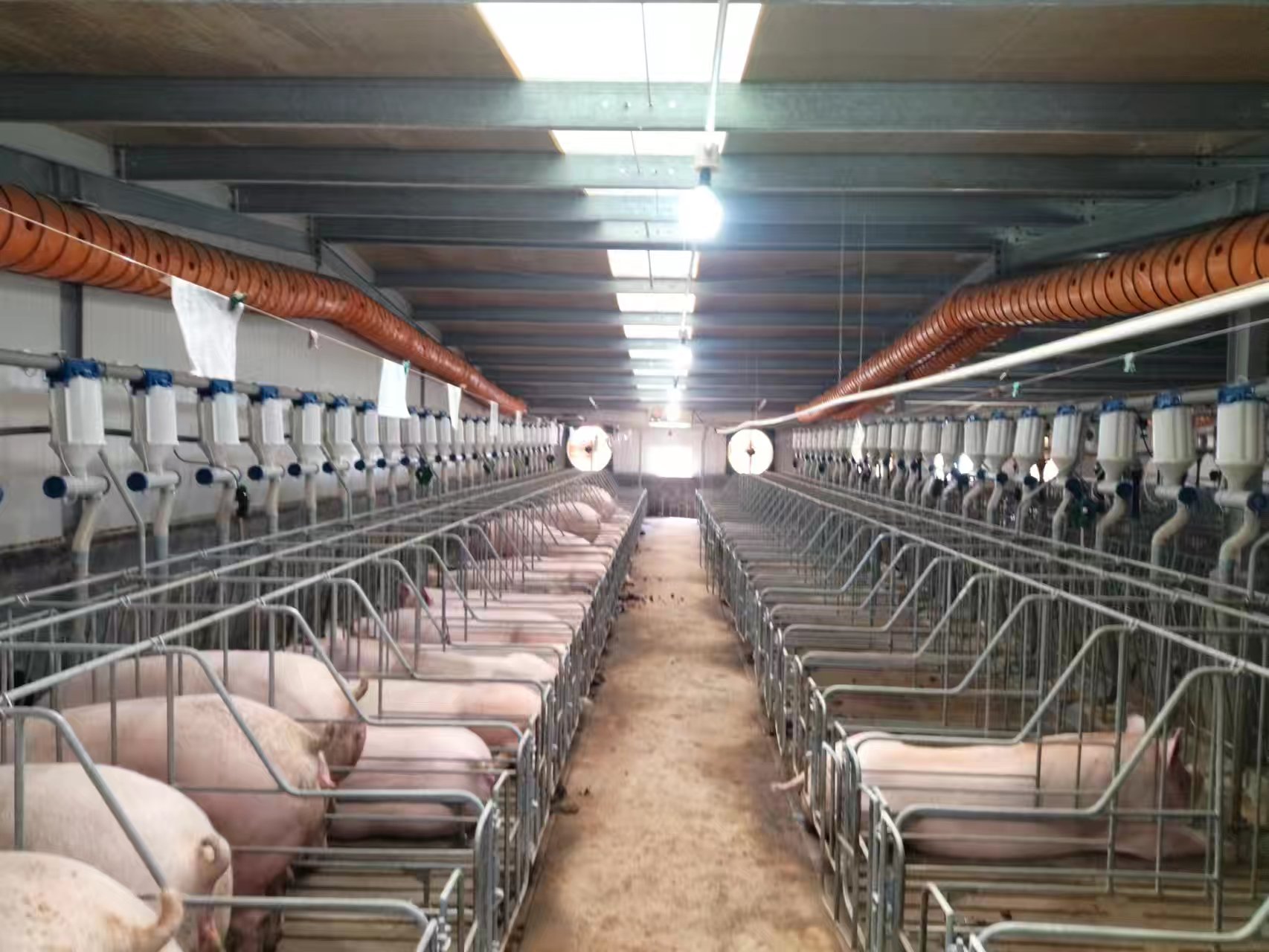

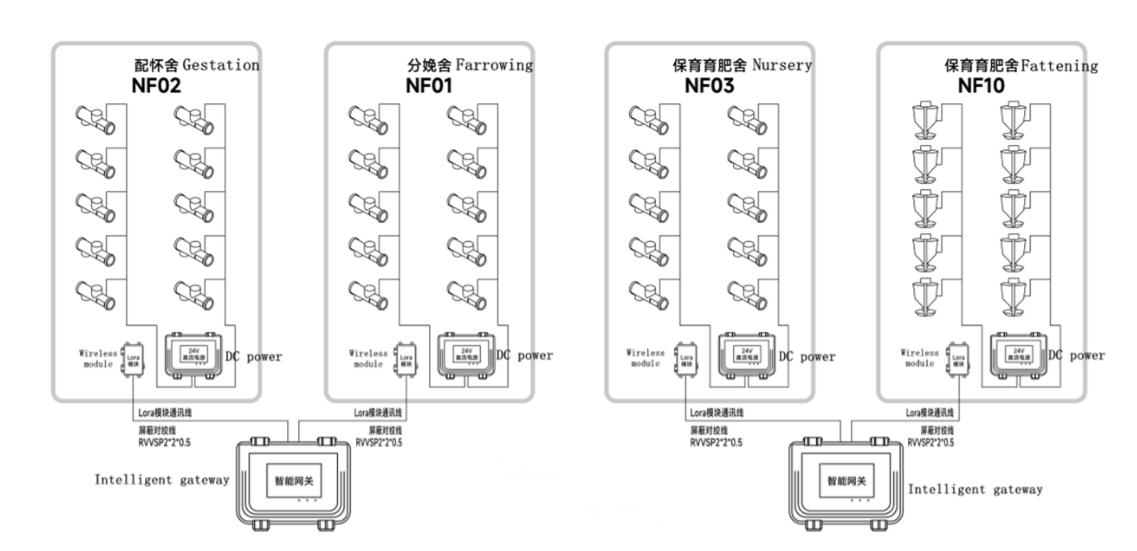

Equipment Distribution Diagram

Control the feed quantity accurately according to each sow.
The optimal feeding curve setting. Feed automatically and accurately in real-time. Save labor effectively.
Intelligent Feeding System improves feeding efficiently and financially.
Remote control with IOT platform.

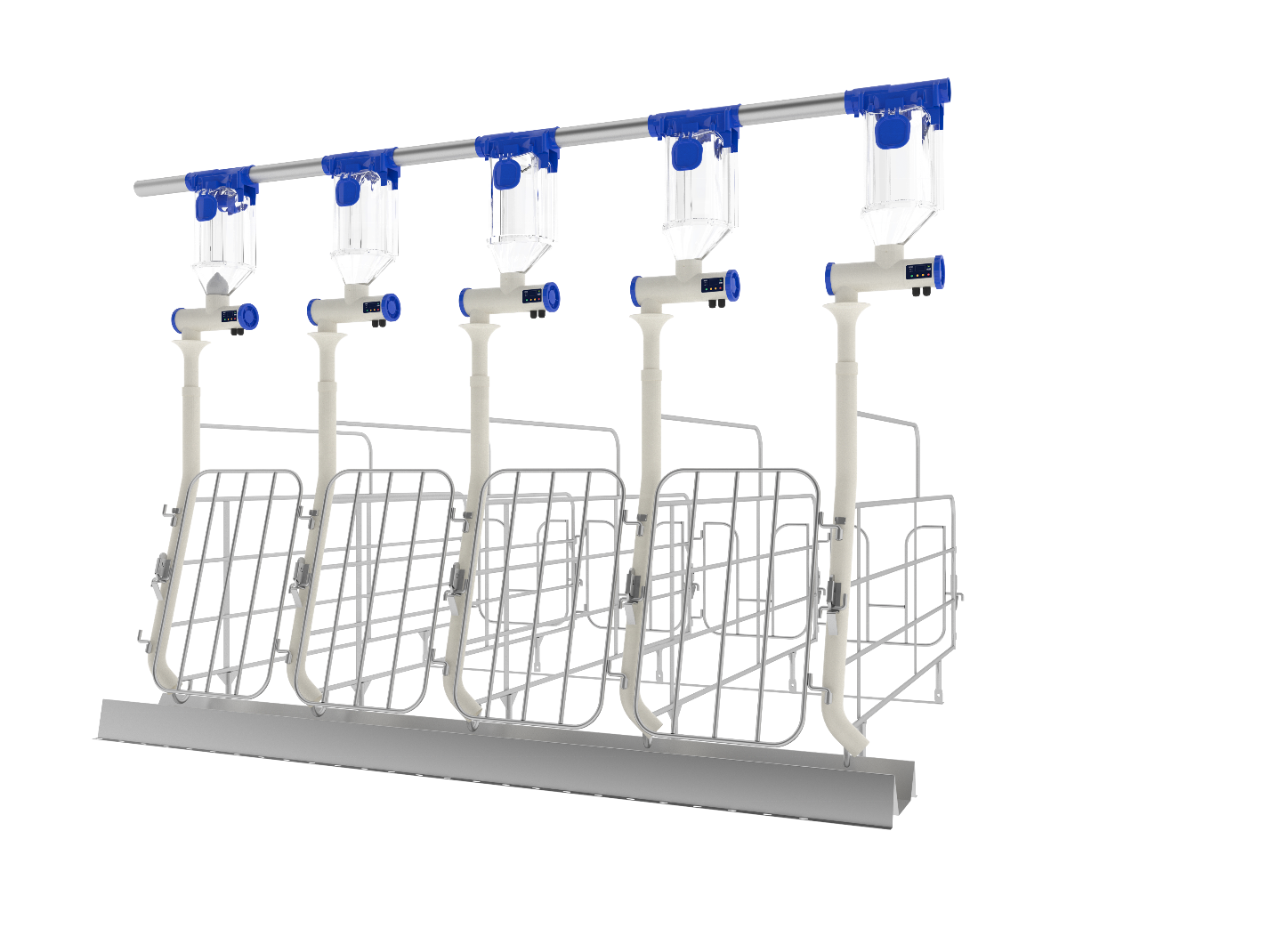

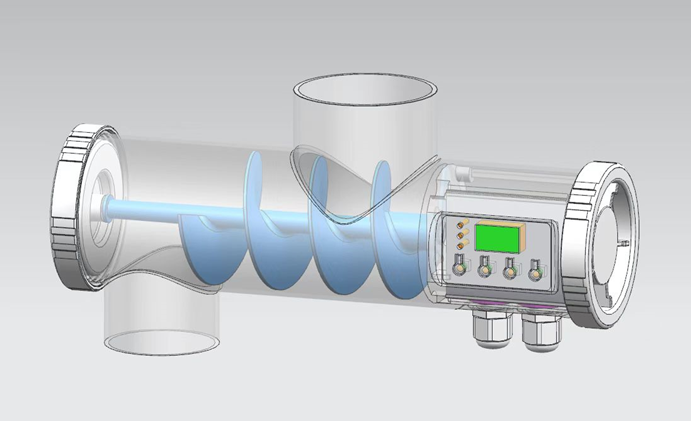

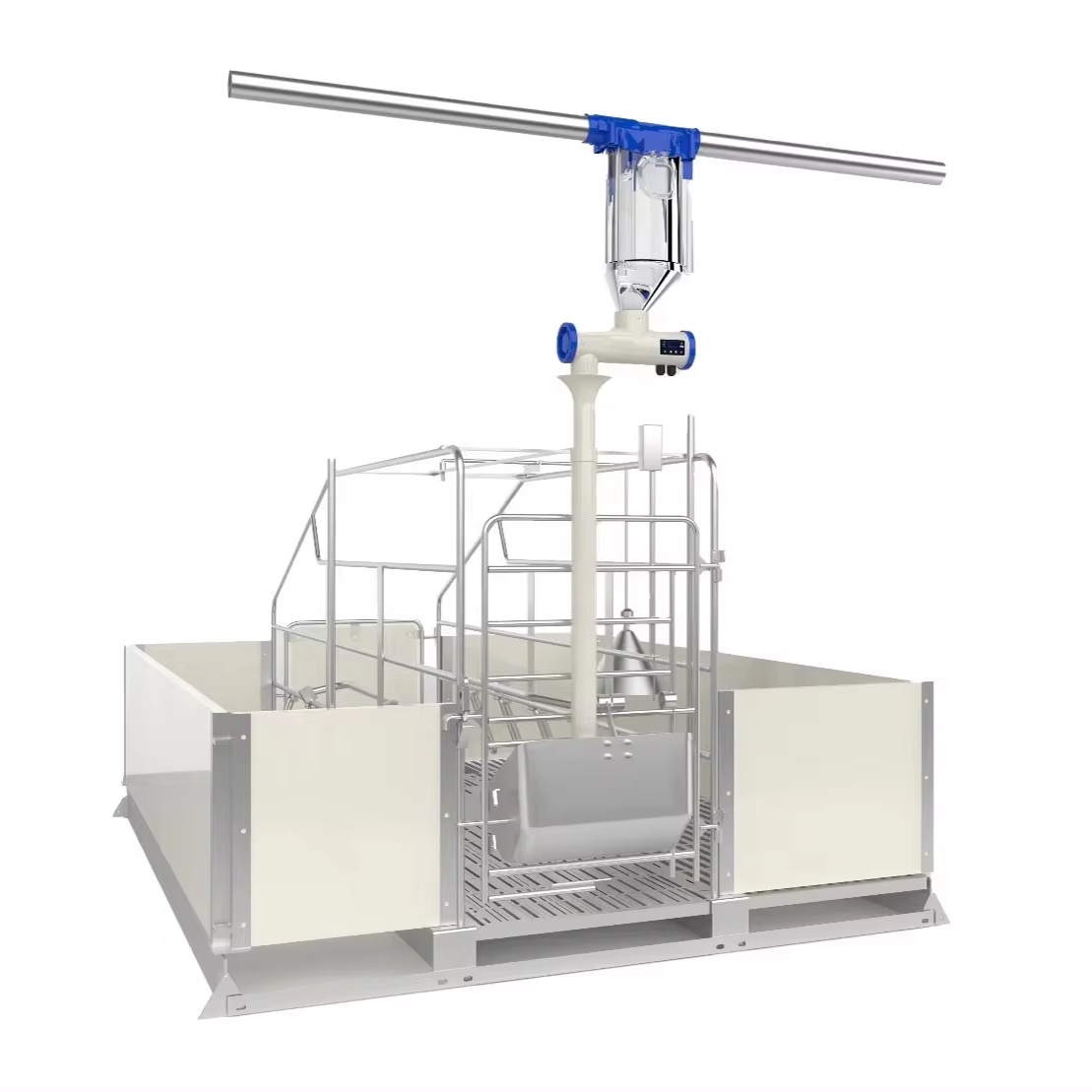

1. NF01 Feeder For Farrowing Phase Sow

Main Technical Parameters

Power: DC24V
Rated power: <20W
Control output: auger/water control
Collection input: water intake and feed intake
Accuracy of laying-off : particles 3% and powder 1%

Main Functions

Two feeding states: predelivery/lactation, and automatic switching of centralized labor;
To achieve the optimal feeding effect, set different feeding times, feeding proportion and water and feed ratio every day;
Set feed amount accurately as per individual differences, such as birth parity, litter size, backfat value etc.;
Interacted Feeding, no laying-off until twiddle is detected. 24 hours laying-off;
Automatically add or reduce meal times as per different situations;
Analyze data with big data platform to form automatically feed control model;
One-click bind sows’ ear tags with materials data to switch feeding state;
Proper water/feed ration provides perfect palatability, and makes fast weight gain and high survival rate;
Intelligent adjustment, no manual intervention, optimize labor, reduce cost and increase efficiency.

2. NF02 Feeder For Gestation Phase Sow

Main Technical Parameters

Power: DC24V
Rated power: <20W
Control output: auger control
Accuracy of laying-off : particles 3% and powder 1%

Main Functions

To achieve the optimal feeding effect, set different feeding times, feeding proportion and water and feed ratio every day;
Feeding curves can be set for primiparity and multiparity. Automatically switch feeding curves as per parity to adjust feeding amount;
Accurately control fatness. Bases on day-age automatically adjust reference backfat value to calculate needed feed amount;
One-click bind sows’ ear tags with materials data to switch feeding state;
Automatically add or reduce meal times as per different situations;
Intelligent adjustment, no manual intervention, optimize labor, reduce cost and increase efficiency;
Dynamic data management of intake and herds to provide guidance for feeding decision.

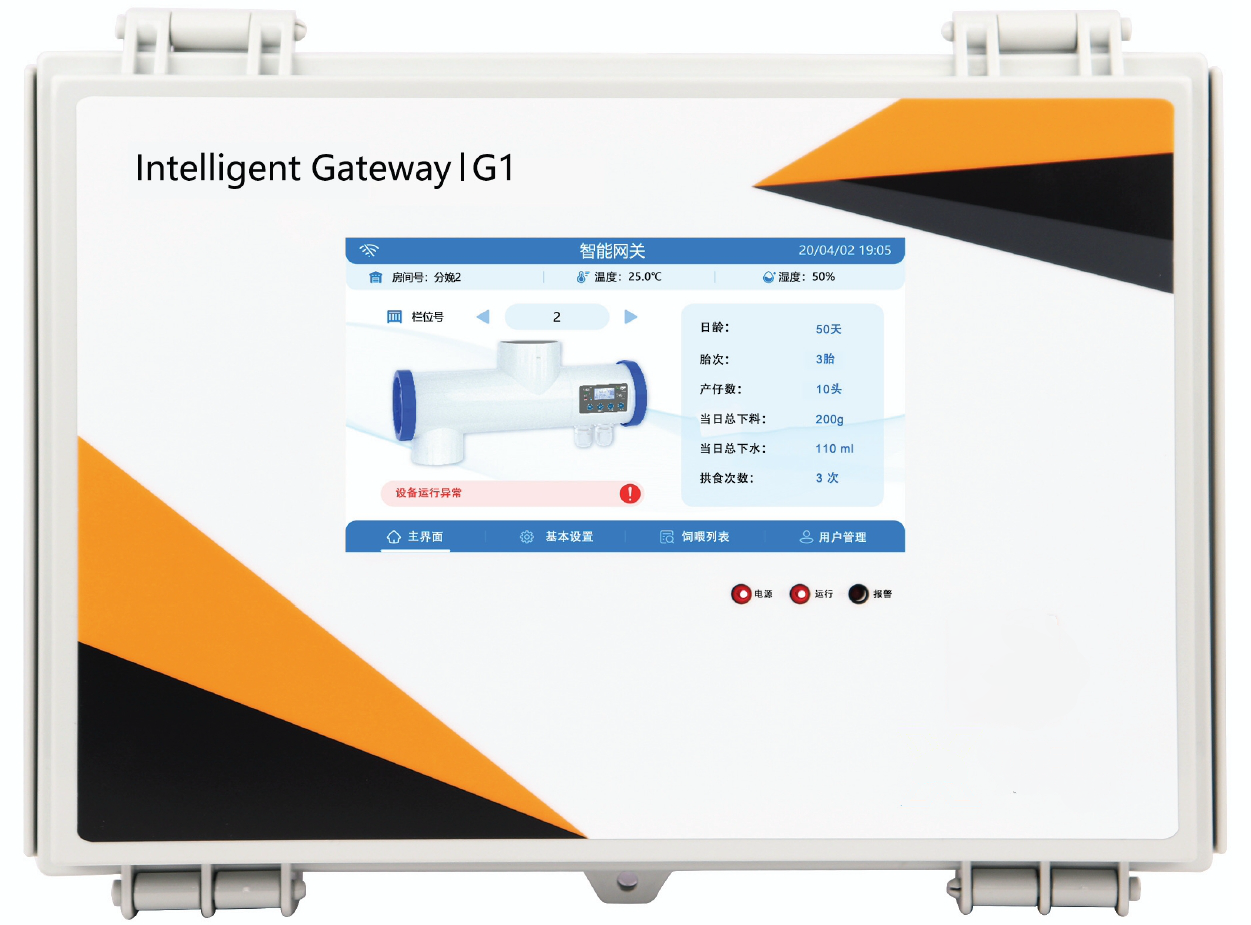

3. Intelligent Gateway G1

Main Functions

Support Max. 600 sets of NF01 or NF02.
Act as controller of the feeders. Can be connected to the IoT platform through network cables or 4G modules.
Power supply: AC85-305V, 50/60Hz.

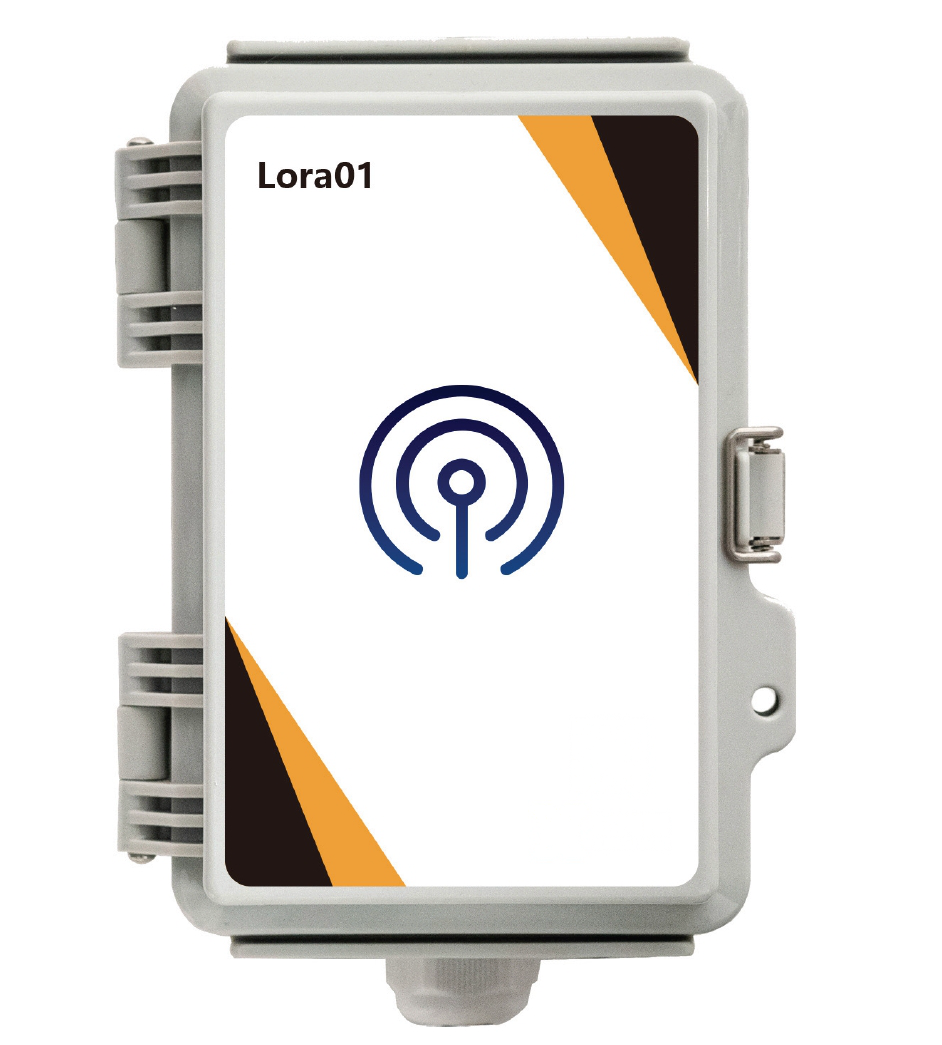

4. Lora Wireless Module

Main Functions

Wireless module to make data communications with the feeders.
Support 120 sets of feeders NF01 or NF02 within one room.

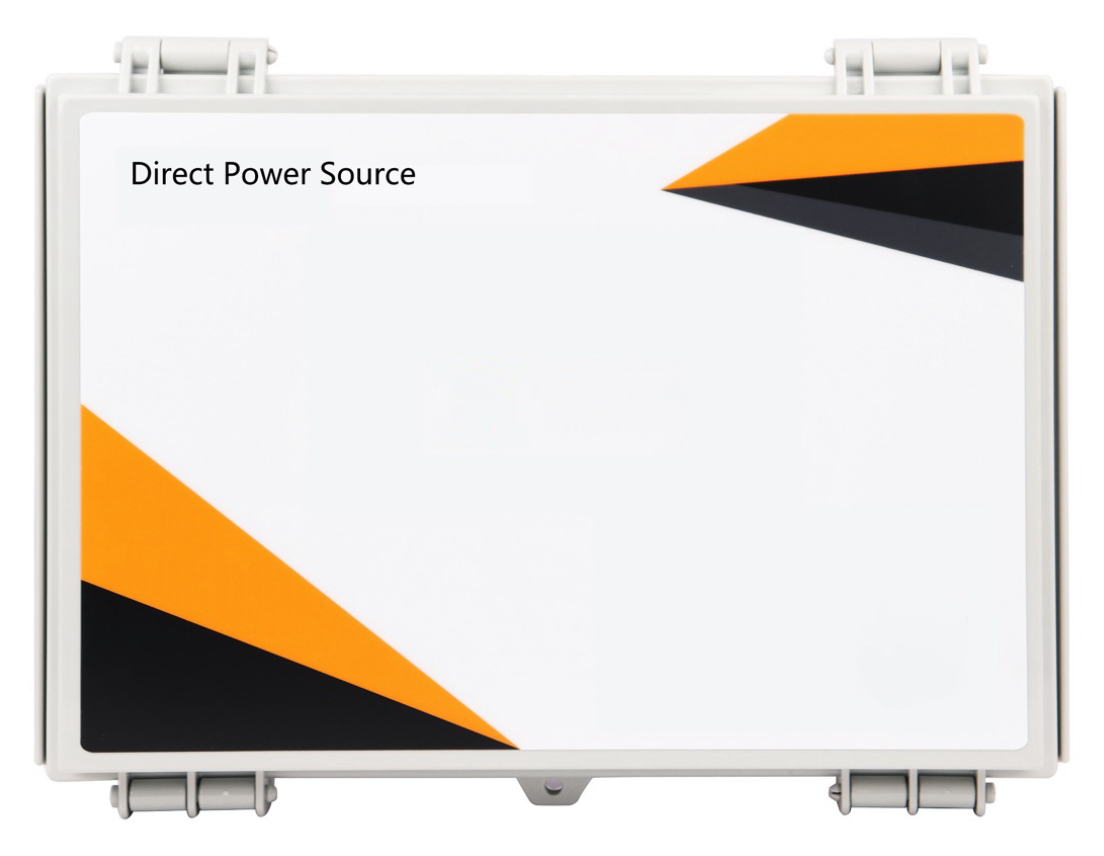

5. DC Power Source

Main Functions

Wireless module to make data communications with the feeders.
Support 120 sets of feeders NF01 or NF02 within one room.

6. Remote control with IOT platform

The optimal dietary effect was achieved by setting different meals and feeding proportion every day.

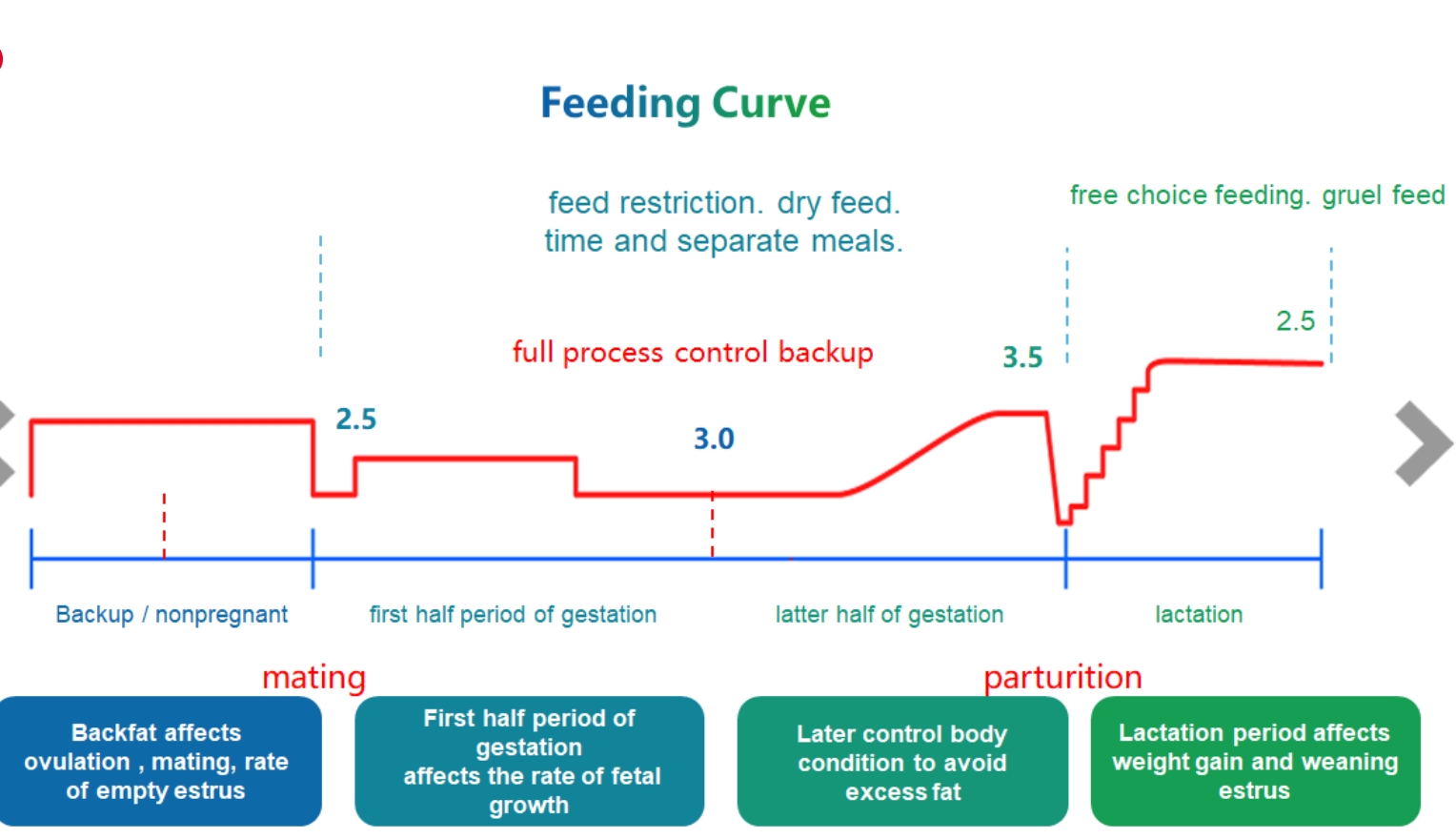

Feeding curves can be set at first birth and after birth. Feeding curves can be automatically switched according to the parity to adjust feeding quantity.
Accurate fattening control, the system automatically adjusts the reference backfat value of pregnant sows in each period according to the day age, and adjusts the feeding amount according to the current actual backfat calculation.
Associate material files, bind sow ear tags with one key, and switch feeding state.
It can be adjusted automatically by adding or reducing meals separately according to different situations.
Intelligent adjustment, no manual intervention, optimize labor force, reduce cost and increase efficiency.
Feeding information and dynamic data management of pig herd to provide decision-making guidance for feeding.

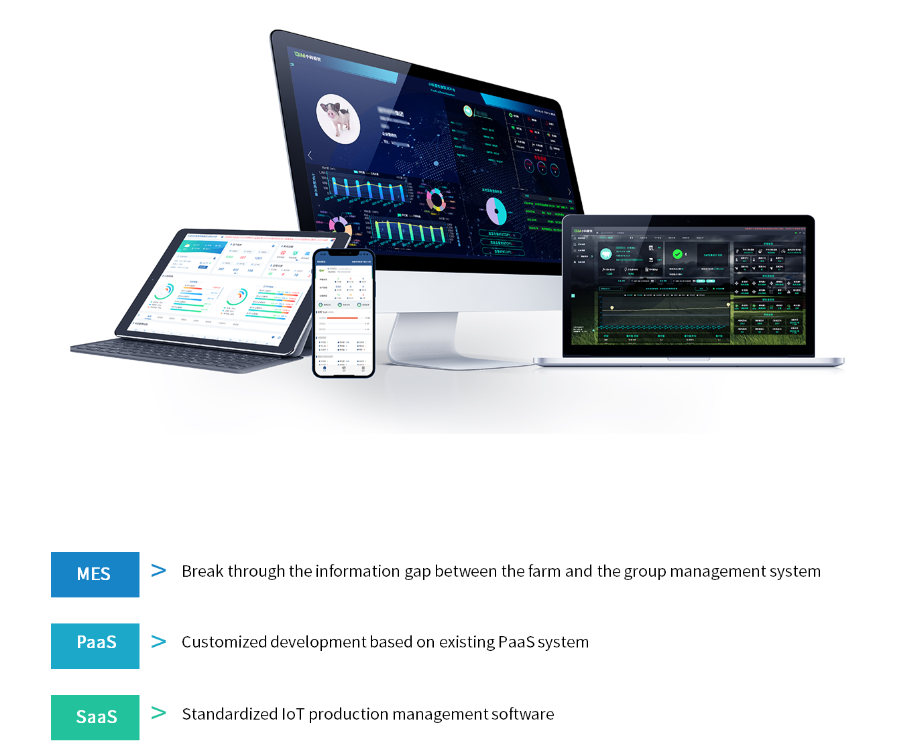

MES	Break through the information gap between the farm and the group management system.
PaaS	Customized development based on existing PaaS system.
SaaS	Standardized IoT production management software.

We are committed to building the Only One System platform, combining the traditional AiFarm IoT platform with the ERP system, OA office system, ARS accounts receivable system, and EQ electronic quotation system specially developed for breeding. To solve the problem of information barriers of enterprises, reduce costs and increase efficiency.

Exhibition & Clients

Frequently Asked Questions (FAQ)

What types of farming equipment can be sourced?

You can acquire high-quality poultry farming equipment, pig farming equipment, breeder farming equipment, layer cage systems, and broiler floor breeding installations.

How is the quality of the breeding equipment guaranteed?

Quality is consistently maintained through strict protocols, including a mandatory pre-production sample test before starting mass production, followed by a thorough final inspection of all components before shipment.

What is the feed laying-off accuracy of the intelligent feeders?

Both the NF01 and NF02 series intelligent feeders offer precise control, guaranteeing an accuracy of laying-off up to 3% for particles and 1% for powder feed.

What are the primary functions of the Intelligent Gateway G1?

The G1 gateway acts as the main controller for up to 600 sets of NF01 or NF02 feeders. It links directly to the IoT management platform using network cables or integrated 4G modules.

Which delivery and payment options are accepted?

Accepted delivery terms include FOB, CFR, CIF, DDP, and DDU. Payments are accepted in USD and EUR via T/T and L/C. Support services are available in English, Chinese, and German.

How does the IoT platform optimize farm labor and efficiency?

The platform automatically sets and switches optimal feeding curves based on sow parities and reference backfat values. This removes the necessity of constant manual adjustments, substantially lowering operational costs.
